Presentation of Frigate and Frigate+
Presentation
This section is divided into several pages:
- hardware management , i.e. cameras and the Google Coral accelerator USB key (TPU)
- the presentation of ZoneMinder
- This page presents Frigate and Frigate+.
Personally, I
use Frigate with the Frigate+ option,
with a system architecture similar to the diagram below.
Frigate
runs on a dedicated
mini PC accessible from the internet with an
encrypted connection via a Let's Encrypt
certificate. Everything is managed by Traefik, which also
handles authentication. Both run on the Docker
containerization tool. Locally, this
mini PC is called Cerbere. It's supported by a
secondary machine called Ultra, which manages a
low-cost camera whose RTSP address fluctuates
regularly. Ultra also runs an Apache httpd server.
Cerbere
uses a
Google Coral TPU key to accelerate the training
models. A total of six
IP cameras are connected, distributed outdoors. Four are
connected via PoE (Power over Ethernet), and three use
PTZ (Pitch-to-Zoom) functionality and are mobile.
The cameras
include a video intercom controlled from a monitor
connected indoors via PoE Ethernet. There's also a
low-cost camera connected via a Wi-Fi repeater located
in an outdoor electrically powered area.
Physically, my system is distributed across several
zones:
- Exterior: Location of the cameras, all of which withstand harsh weather and the southern sun very well.
- Garage: Location of my Cerbere server and all the network connections in the house, with a standard switch to which the RJ45 cables serving the different rooms of the house are connected (and which replaced the telephone cables), and a PoE switch for the cameras.
- Mezzanine: Location of my modem, router, and other Ultra server.
- Outdoor area: Location of a Wi-Fi repeater to extend the range of a camera.
- Kitchen: Location of the video intercom screen, whose camera is integrated into the system.
There are a
plethora of IP cameras on the market; the cheapest are
often Chinese models linked to an Android app with
highly questionable security. The selection
criteria are:
- Cameras that generate an RTSP video stream with a static IP address and integrate very easily with ZoneMinder or Frigate. Websites like ipcamlive or ispyconnect list cameras by brand with a static RTSP address. Despite this, since I hadn't initially considered this criterion, I have one camera whose RTSP address changes regularly. It's not insurmountable, but it complicates the installation because scripts will need to be implemented to make the address static for ZoneMinder or Frigate.
- Cameras can be configured by connecting via their IP address in a browser without needing an application. For the low-cost cameras, however, I had to use the Android app to configure them.
- Administrative settings allow you to change network settings to connect to a local network. The cameras should not be directly accessible on the internet but only via Frigate or ZoneMinder.
- It's not strictly mandatory, but it's better if the camera can connect via PoE Ethernet. This allows for a single cable (no power cable, everything goes through the Ethernet cable), over long distances (my longest cable is 30m) with a reliable and good quality connection. However, I have two low-cost cameras that are not PoE and are powered by a power cable in addition to being connected via standard Ethernet. One of them is more than 50 meters away and is connected to a Wi-Fi repeater. Choosing the right one was tricky because I needed a model that was fully configurable for network settings.
Frigate Installation
Frigate relies on Docker, which I installed simply by typing on my Mageia.
urpmi docker docker-compose
Next, we launch Docker by typing
systemctl start docker
that is its status
systemctl status docker
and the result
● docker.service - Docker Application Container Engine
Loaded: loaded
(/usr/lib/systemd/system/docker.service; disabled; preset:
disabled)
Active: active (running) since Fri
2025-09-26 17:02:55 CEST; 6s ago
Docs:
http://docs.docker.com
Process: 210883
ExecStartPre=/usr/sbin/docker-network-cleanup (code=exited,
status=0/SUCCESS)
Main PID: 210886 (dockerd)
Tasks: 17
Memory: 41.1M
CPU: 369ms
CGroup:
/system.slice/docker.service
├─210886 /usr/sbin/dockerd --data-root /var/cache/docker -H
unix:///var/run/docker.sock -H tcp://127.0.0.1:2375
└─210899 containerd --config
/var/run/docker/containerd/containerd.toml
sept. 26 17:02:52 ultra.kervao.fr dockerd[210899]:
time="2025-09-26T17:02:52.687489959+02:00" level=info
msg=serving...
address=/var/run/docker/containerd/containerd.sock
sept. 26 17:02:52 ultra.kervao.fr dockerd[210899]:
time="2025-09-26T17:02:52.687576078+02:00" level=info
msg="containerd successfully booted in 0.201550s"
sept. 26 17:02:54 ultra.kervao.fr dockerd[210886]:
time="2025-09-26T17:02:54.283134739+02:00" level=info
msg="Loading containers: start."
sept. 26 17:02:55 ultra.kervao.fr dockerd[210886]:
time="2025-09-26T17:02:55.007460149+02:00" level=info
msg="Loading containers: done."
sept. 26 17:02:55 ultra.kervao.fr dockerd[210886]:
time="2025-09-26T17:02:55.281188368+02:00" level=warning
msg="WARNING: API is accessible on http://127.0.0.1:2375 without
encryption>
sept. 26 17:02:55 ultra.kervao.fr dockerd[210886]:
time="2025-09-26T17:02:55.281244407+02:00" level=info
msg="Docker daemon" commit=library-import
containerd-snapshotter=false storage>
sept. 26 17:02:55 ultra.kervao.fr dockerd[210886]:
time="2025-09-26T17:02:55.281378785+02:00" level=info
msg="Daemon has completed initialization"
sept. 26 17:02:55 ultra.kervao.fr dockerd[210886]:
time="2025-09-26T17:02:55.804448712+02:00" level=info msg="API
listen on /var/run/docker.sock"
sept. 26 17:02:55 ultra.kervao.fr systemd[1]: Started
docker.service.
sept. 26 17:02:55 ultra.kervao.fr dockerd[210886]:
time="2025-09-26T17:02:55.804558097+02:00" level=info msg="API
listen on 127.0.0.1:2375"
to see if Docker is working correctly, we will type
Docker Run Hello World
Here is the result
Unable to find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
17eec7bbc9d7: Pull complete
Digest:
sha256:54e66cc1dd1fcb1c3c58bd8017914dbed8701e2d8c74d9262e26bd9cc1642d31
Status: Downloaded newer image for hello-world:latest
Hello from Docker!
This message shows that your installation appears to be
working correctly.
To generate this message, Docker took the following
steps:
1. The Docker client contacted the Docker daemon.
2. The Docker daemon pulled the "hello-world" image
from the Docker Hub.
(amd64)
3. The Docker daemon created a new container from
that image which runs the
executable that produces the output
you are currently reading.
4. The Docker daemon streamed that output to the
Docker client, which sent it
to your terminal.
To try something more ambitious, you can run an Ubuntu
container with:
$ docker run -it ubuntu bash
Share images, automate workflows, and more with a free
Docker ID:
https://hub.docker.com/
For more examples and ideas, visit:
https://docs.docker.com/get-started/
To have Docker launch on every reboot, type
systemctl enable docker
We will create the /etc/frigate and /etc/frigate/config directories ; the records will be stored in the /media/frigate directory. We return to /etc/frigate/config where I created the docker-compose.yml file which will contain
services:
frigate:
container_name: frigate
privileged: true # this may not be
necessary for all setups
network_mode: host # j'ai dû rajouter cette
ligne pour accéder à ma caméra restreamée avec mediamtx
restart: unless-stopped
stop_grace_period: 30s # allow enough
time to shut down the various services
image:
ghcr.io/blakeblackshear/frigate:stable
shm_size: "512mb" # update for your
cameras based on calculation above
devices:
- /dev/bus/usb:/dev/bus/usb # ligne
pour l'accélérateur USB Google Coral, à commenter sinon
-
/dev/dri/renderD128:/dev/dri/renderD128 # For intel hwaccel,
needs to be updated for your hardware
volumes:
-
/etc/localtime:/etc/localtime:ro
-
/etc/frigate/config:/config
-
/media/frigate:/media/frigate
- type: tmpfs # Optional:
1GB of memory, reduces SSD/SD Card wear
target:
/tmp/cache
tmpfs:
size: 1000000000
ports: #section inutile avec le
mode réseau host
- "8971:8971" # port
de l'interface navigateur
#- "8554:8554" # RTSP feeds,
j'ai mis en commentaire car conflit avec mediamtx, utile pour
renvoyer le flux vidéo vers homeassistant
- "8555:8555/tcp" # WebRTC
over tcp
- "8555:8555/udp" # WebRTC
over udp
and config.yaml in which we will define the cameras and objects to detect (list here https://docs.frigate.video/configuration/objects )
mqtt:
enabled: false
cameras:
Camera-sud:
ffmpeg:
inputs:
- path:
rtsp://frigate:passwd@192.168.2.110
roles:
- detect
- record
hwaccel_args: preset-vaapi
objects:
track:
- person
- dog
- cat
- bird
- bicycle
- car
- motorcycle
detect:
width: 1280
height: 720
record:
enabled: true
retain:
days: 7
mode: all
Camera-entree:
ffmpeg:
inputs:
- path:
rtsp://frigate:passwd@192.168.2.112
roles:
- detect
- record
hwaccel_args: preset-vaapi
objects:
track:
- person
- dog
- cat
- bird
- bicycle
- car
- motorcycle
detect:
width: 1280
height: 720
record:
enabled: true
retain:
days: 7
mode: all
Camera-piscine:
ffmpeg:
inputs:
- path:
rtsp://frigate:passwd@192.168.2.200:554/ch0_1.264
roles:
- detect
- record
objects:
track:
- person
- dog
- cat
- bird
detect:
width: 800
height: 448
record:
enabled: true
retain:
days: 7
mode: all
Camera-ouest:
ffmpeg:
inputs:
- path:
rtsp://ultra.kervao.fr:8554/cam1
roles:
- detect
- record
objects:
track:
- person
- dog
- cat
- bird
detect:
width: 640
height: 360
record:
enabled: true
retain:
days: 7
mode: all
detectors:
cpu1:
type: cpu
num_threads: 3
detect:
enabled: true
version: 0.16-0
If you have a Google Coral USB accelerator, we will replace it with the detectors.
coral:
type: edgetpu
device: usb
- preset-vaapi
- preset-intel-qsv-h264 for H264 streams
- preset-intel-qsv-h265 for H265 streams
Then type in this same directory
docker compose -f docker-compose.yml up -d
Here is the result: 9.6s
+] Running 10/10
✔ frigate 9 layers
[⣿⣿⣿⣿⣿⣿⣿⣿⣿]
0B/0B
Pulled
79.5s
✔ b1badc6e5066 Pull
complete
1.2s
✔ 4f4fb700ef54 Pull
complete
0.3s
✔ 14d4601b76c8 Pull
complete
14.6s
✔ cab46c26a5aa Pull
complete
1.1s
✔ 6891a7512d41 Pull
complete
14.3s
✔ b44b002328e4 Pull
complete
8.3s
✔ 8074b201d282 Pull
complete
8.6s
✔ d823104cefbd Pull
complete
9.0s
✔ f86078113133 Pull
complete
9.6s
[+] Running 2/2
✔ Network config_default
Created
0.1s
✔ Container
frigate Started
docker restart frigate
First launch
Frigate is now installed, launched, and accessible locally from the browser by typing
https://ultra.kervao.fr:8971/
To find out the password you will need to type
docker logs frigate
and we see
2025-09-26 17:46:21.528704726 [2025-09-26 17:46:21]
frigate.app
INFO :
********************************************************
2025-09-26 17:46:21.529867665 [2025-09-26 17:46:21]
frigate.app
INFO :
********************************************************
2025-09-26 17:46:21.530590965 [2025-09-26 17:46:21]
frigate.app
INFO : *** Auth is enabled,
but no users
exist. ***
2025-09-26 17:46:21.531237207 [2025-09-26 17:46:21]
frigate.app
INFO : *** Created a default
user:
***
2025-09-26 17:46:21.542212889 [2025-09-26 17:46:21]
frigate.app
INFO : *** User:
admin
***
2025-09-26 17:46:21.566794613 [2025-09-26 17:46:21]
frigate.app
INFO : *** Password:
2bf8aeb98g16b66f54e70a8e8f121076 ***
2025-09-26 17:46:21.577589942 [2025-09-26 17:46:21]
frigate.app
INFO :
********************************************************
2025-09-26 17:46:21.598394530 [2025-09-26 17:46:21]
frigate.app
INFO :
********************************************************

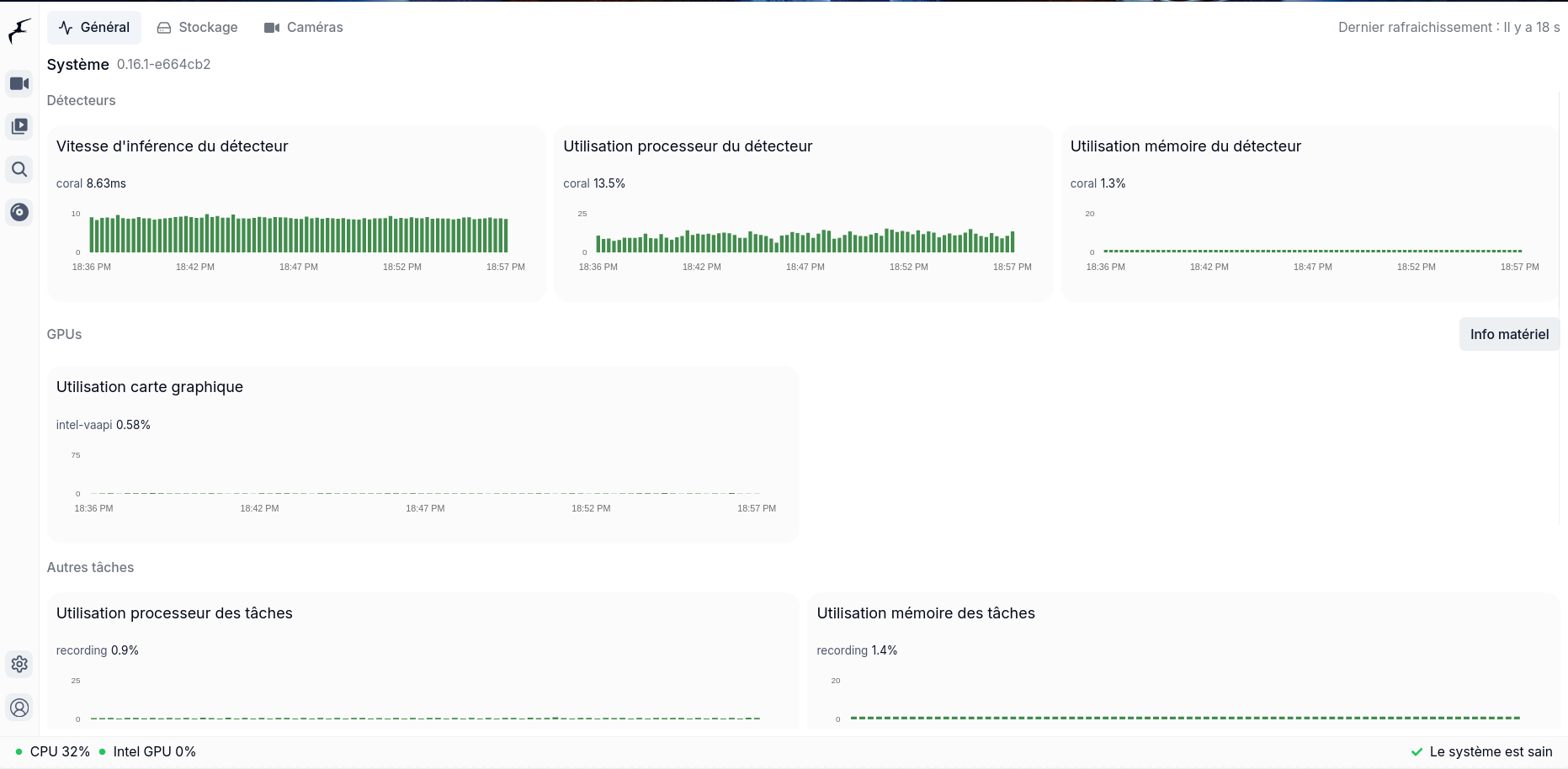

With a TPU, we should get a message that looks like this.
2025-10-30 07:55:40.442764361 [2025-10-30 07:55:40]
frigate.detectors.plugins.edgetpu_tfl INFO :
TPU found
2025-10-30 07:55:40.443899970 INFO: Created
TensorFlow Lite XNNPACK delegate for CPU.

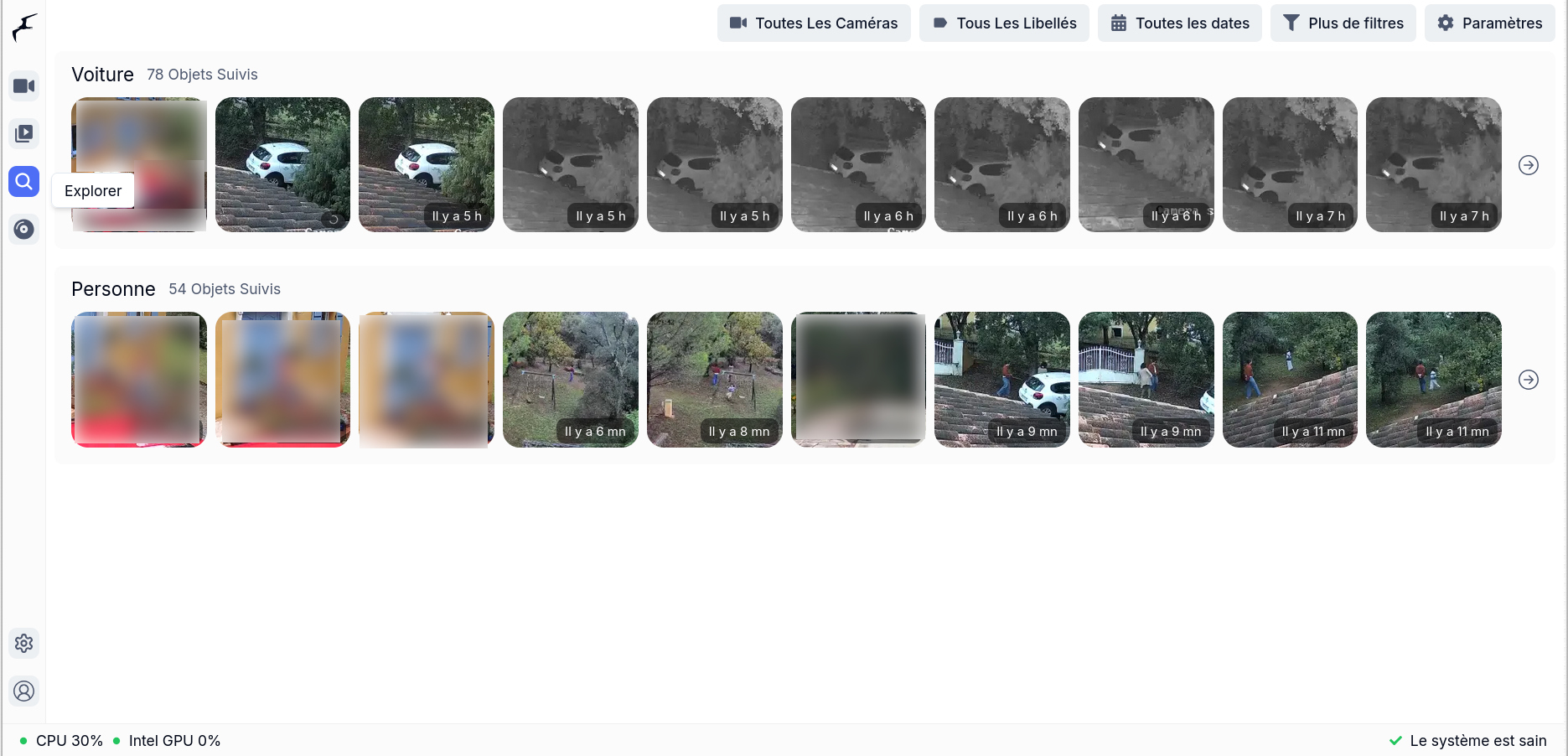

This allows you to
log in, and here's the general interface with the latest
events at the top and the live views just below.

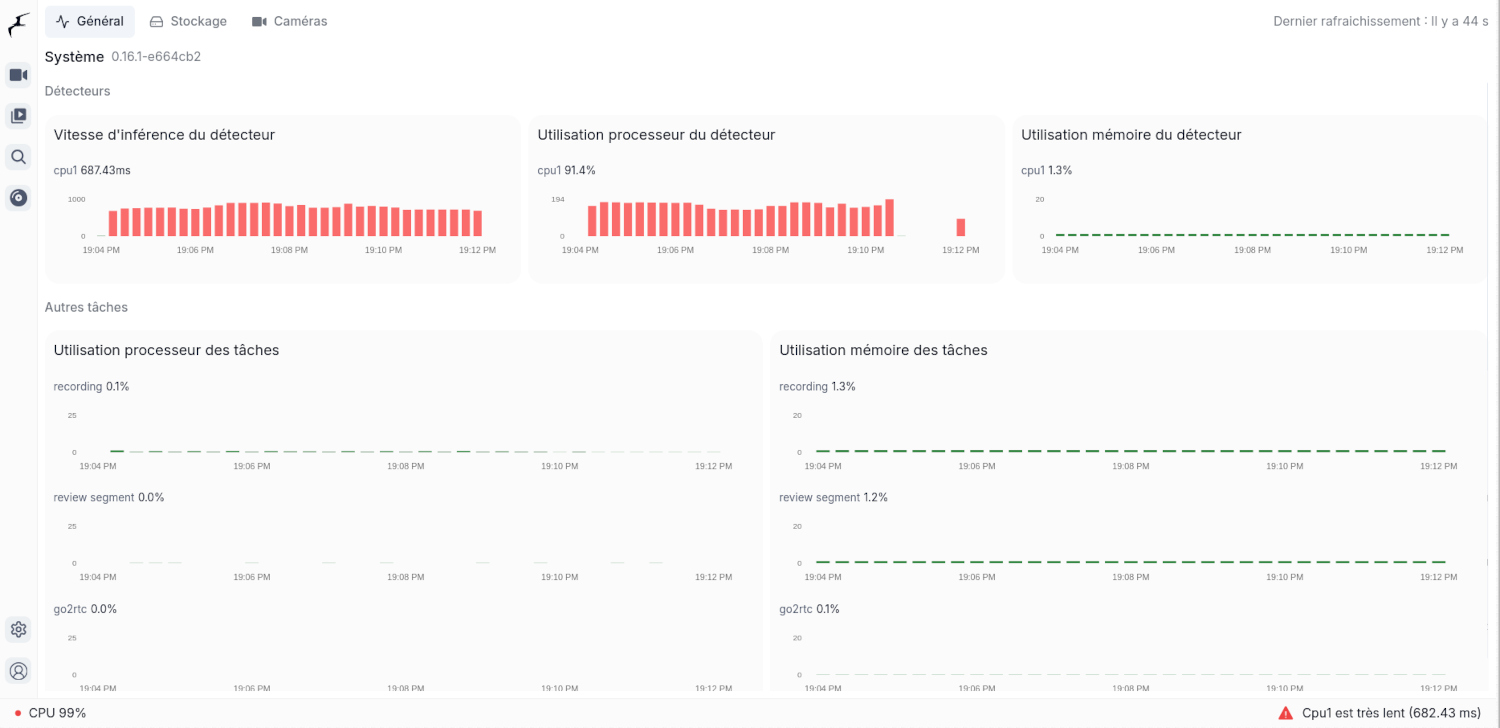

With only the TPU,
it's practically unusable on a daily basis; the program
constantly uses almost 100% of the resources.
And with a TPU, it's like night and day!!
Configuration
Before
going any further, it is important to understand some basic
concepts of how Frigate works. We talk

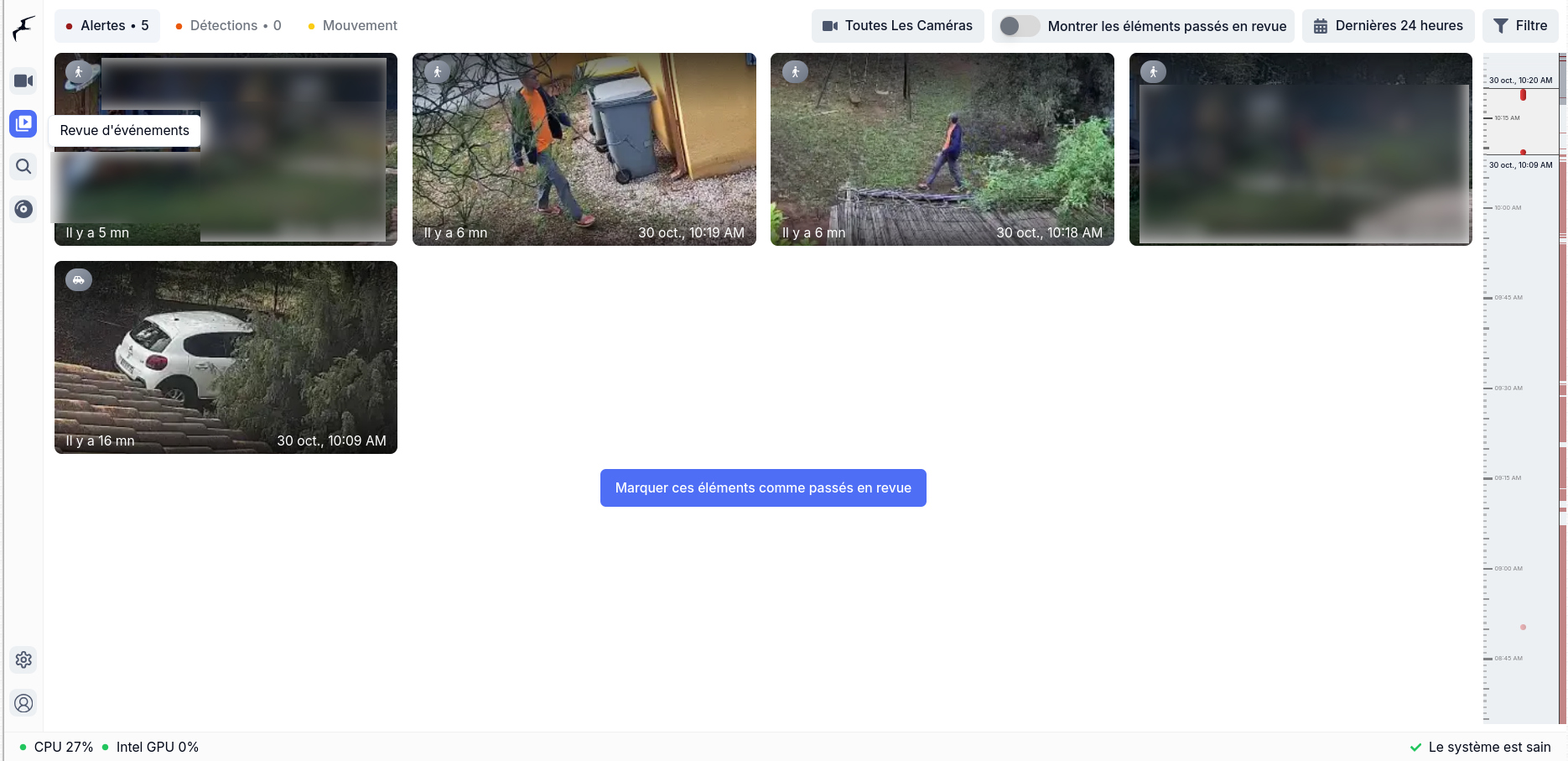

about alerts and detections. Alerts are based on detections
but are considered priority events to be reported, while
detections are less significant events that do not warrant
notification but are still recorded and visible in the event
review (see the documentation in English here https://docs.frigate.video/configuration/review/).
Let's move on to
the settings, accessible via the gear icon in the bottom left
corner of the main screen. This is the interface you get.
In the first
tab, User Interface, there are
general settings that I have not modified.

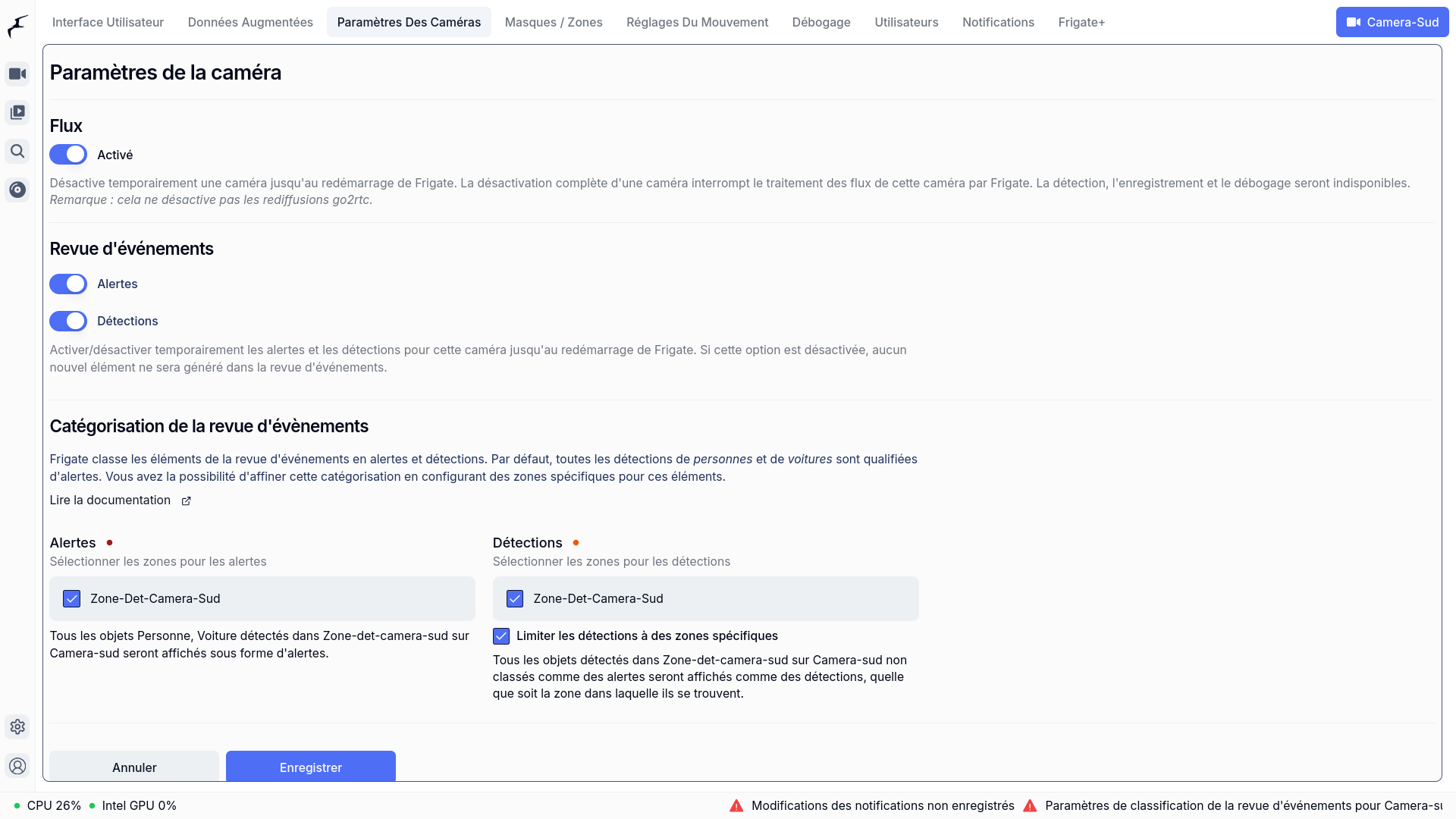

You can then
access the camera settings via Camera
Settings ; the Management menu allows you
to activate or deactivate the cameras, which is useful when
a camera is causing problems and to avoid error messages.
Before going to
Activities, we'll start by

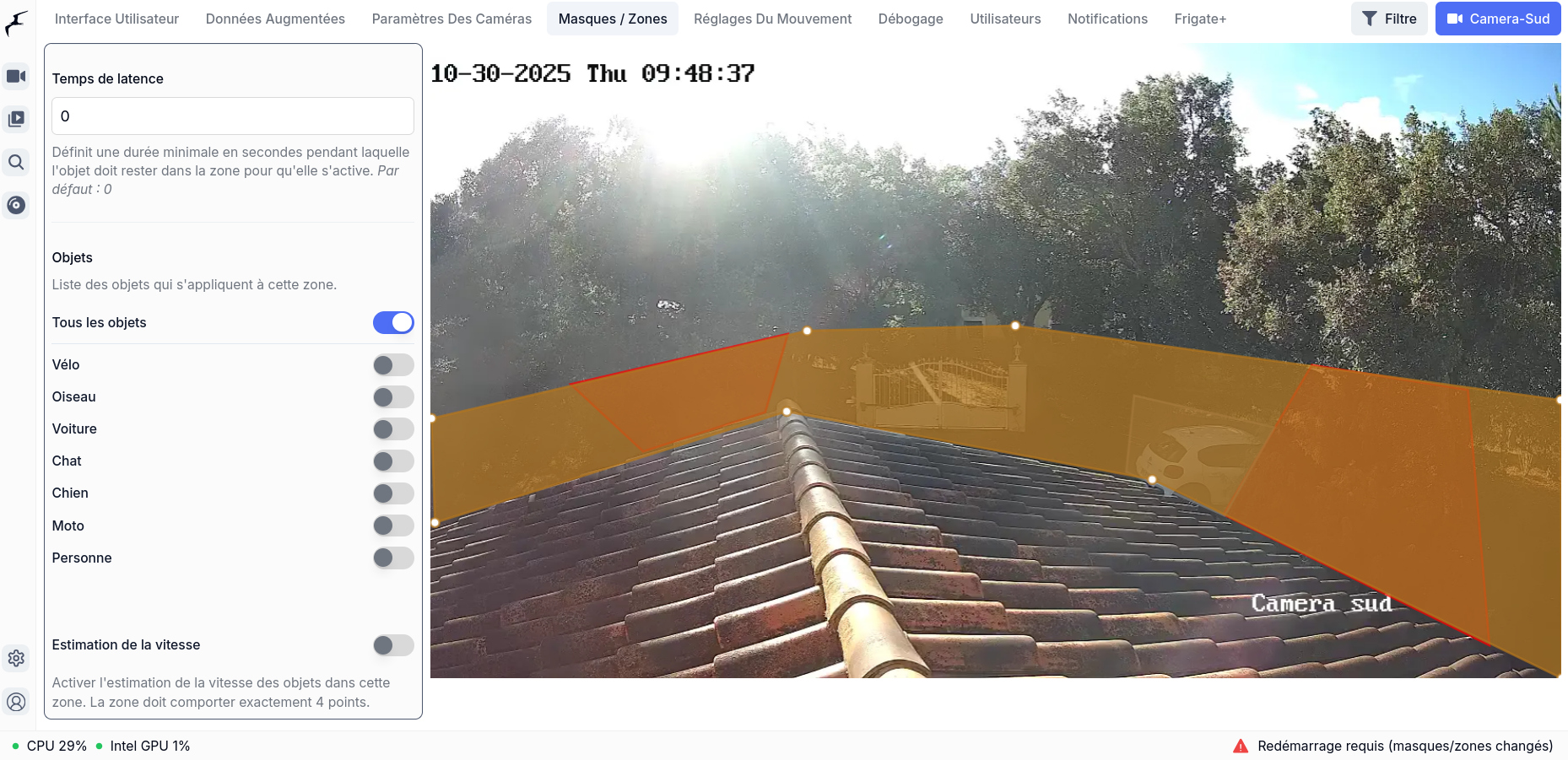

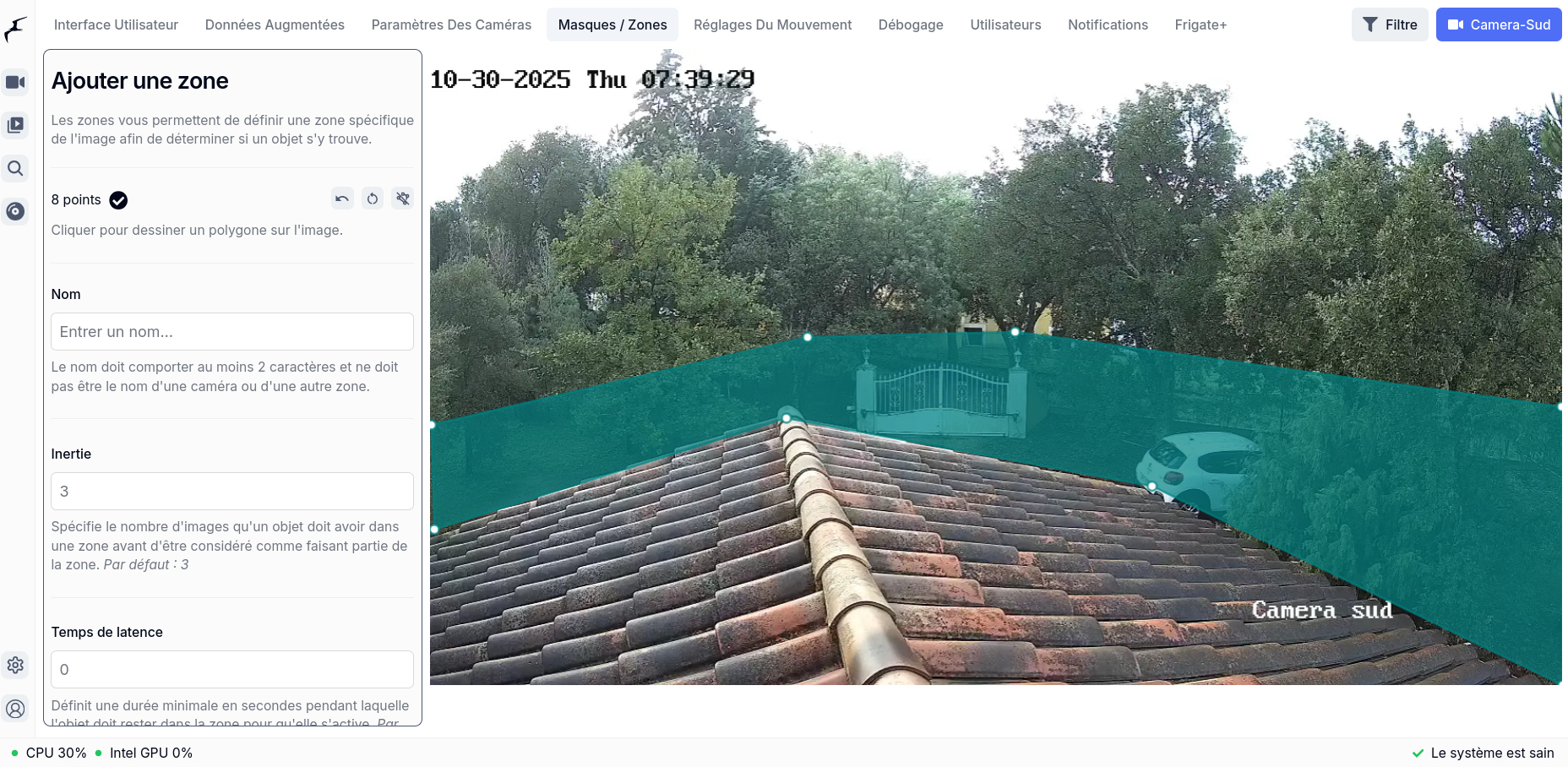

defining the masks and detection zones via Masks/Zones. For each
camera selectable from the blue button in the upper right
corner, we declare detection zones; other areas of the image
will be ignored for detection.
Note that you can select the type of object that can be detected and estimate the speed of the movement.
review:
alerts:
labels:
- person
- car
required_zones: Zone-det-camera-sud
detections:
required_zones: Zone-det-camera-sud

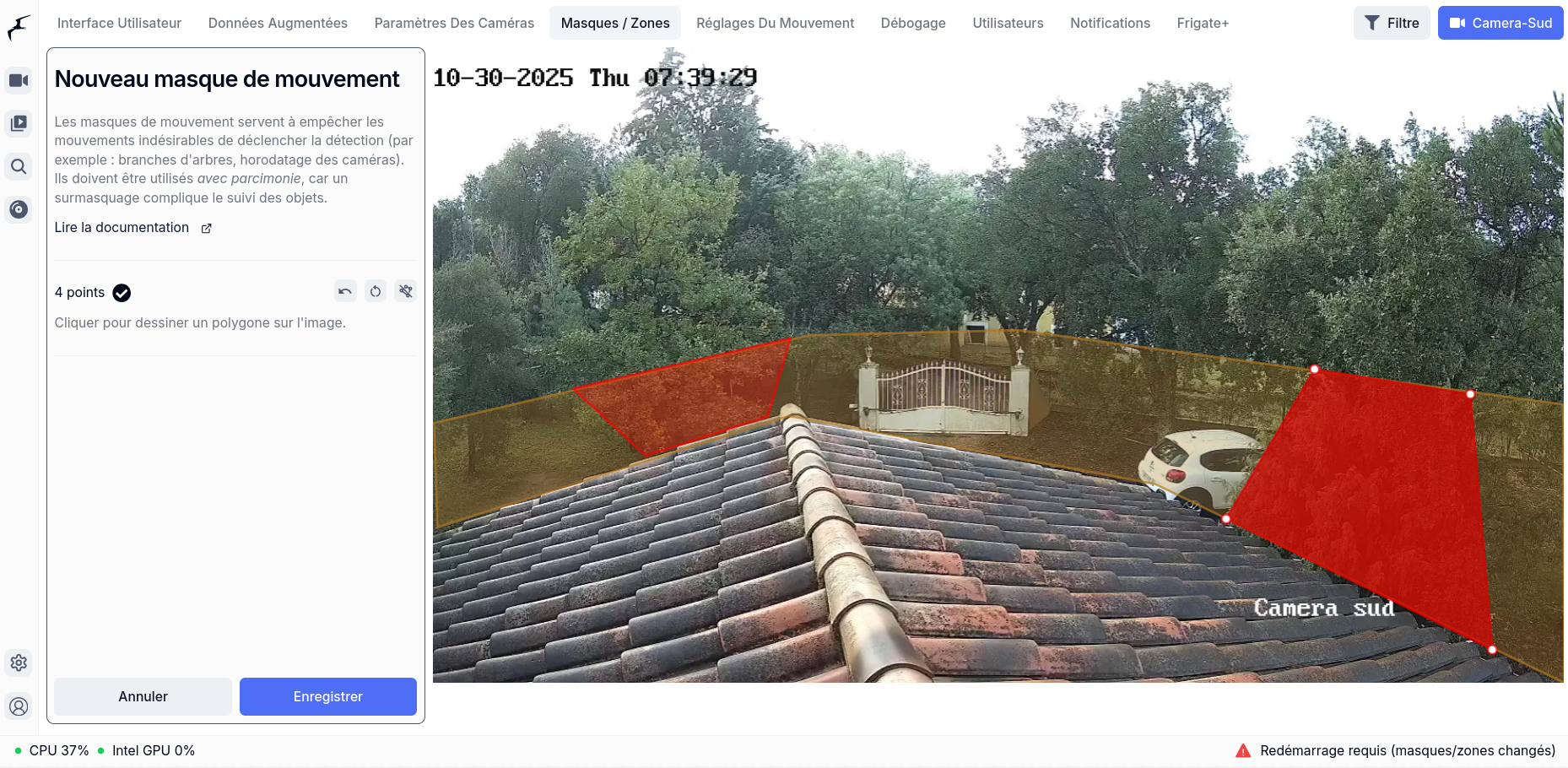

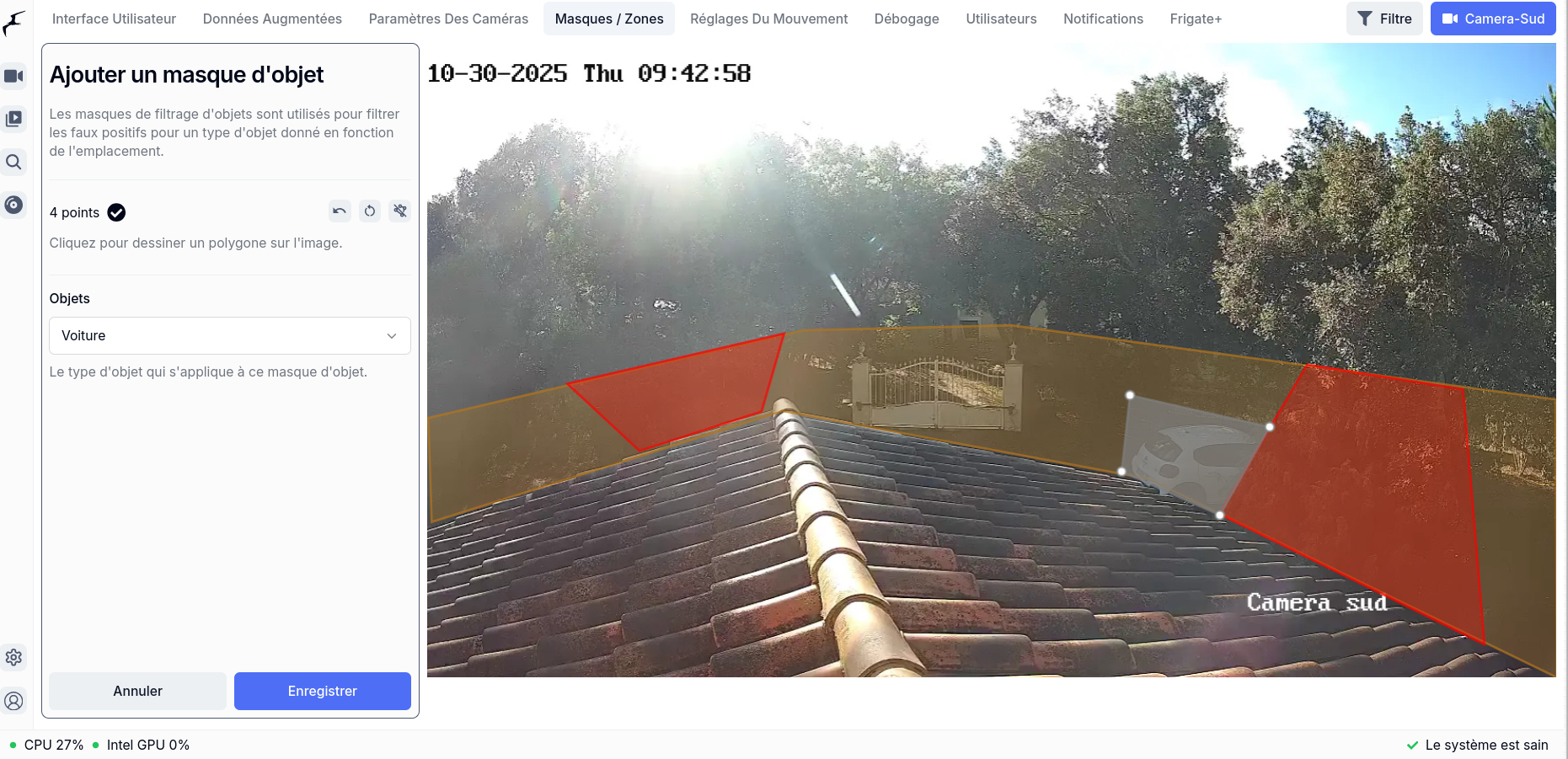

We can also declare motion masks to prevent detection in places where there is a risk of unwanted movement (vegetation), which can disrupt object tracking.
We
now return to the Activities menu ; in the
configuration below, only Person and Car objects will
be displayed as alerts in the predefined area, and other
detected objects will be classified as detections in the
same area.
And
so on for all cameras. Note that you will need to restart
Frigate for the
changes to take effect; this can be done from the Settings
menu.
In
the Enhancements menu, you can
activate (they are disabled by default)
- semantic search allows you to find tracked objects in your event review using either the image itself, a user-defined text description, or an automatically generated description.
- facial recognition
- license plate recognition
- bird identification
Regarding
recordings, by default we have
record:
enabled: true
retain:
days: 7
mode: all
This
means that both alerts and detections are recorded and
stored for 7 days. For more detailed recording management,
see this page: https://docs.frigate.video/configuration/record/
Adjust object detection
This is all rather counterintuitive because when I place a 320x320 frame on the camera image, which has a resolution of 1280x720, I think I'm unlikely to detect people at that scale with this camera, whereas a higher resolution could allow the detection of smaller objects.
I encourage you to place a 320x320 pixel frame over each of your scaled images to see if it's necessary to increase the camera resolution corresponding to the perspective of the objects you wish to detect.
Now, in case of a false positive, it will likely be necessary to adjust some settings; for details, please consult this page : https://docs.frigate.video/configuration/object_filters. In fact, several parameters must be considered for each object:
- score : this is
a non-modifiable parameter calculated for each image
for each detected object
- min_score : all
detected objects with a score lower than this
parameter will be ignored.
- Threshold : This is
the average of the scores for an object detected over
several consecutive images.
Frigate calculates a
score for each object detected in every image, and the
object is considered positive when both the score exceeds
the min_score and the threshold, which is the
average of the scores over several consecutive images.
This last parameter confirms the detection.
Here's what
can be added to the config.yaml file as a
common section for all cameras; these are values
commonly shared by the Frigate user community.
objects:
filters:
dog:
min_score: .7
threshold: .9
cat:
min_score: .65
threshold: .8
person:
min_score: .7
threshold: .9
car:
min_score: .65
threshold: .85
objects:
track:
- person
- dog
- cat
- face
filters:
person:
min_score: .7
threshold: .8
To further reduce false positives, a minimum and maximum detection zone can be defined; that is, if the object is too large or too small, it will be automatically rejected. For a stream with a resolution of 3072x1728, an image can be extracted at that size and opened in GIMP.

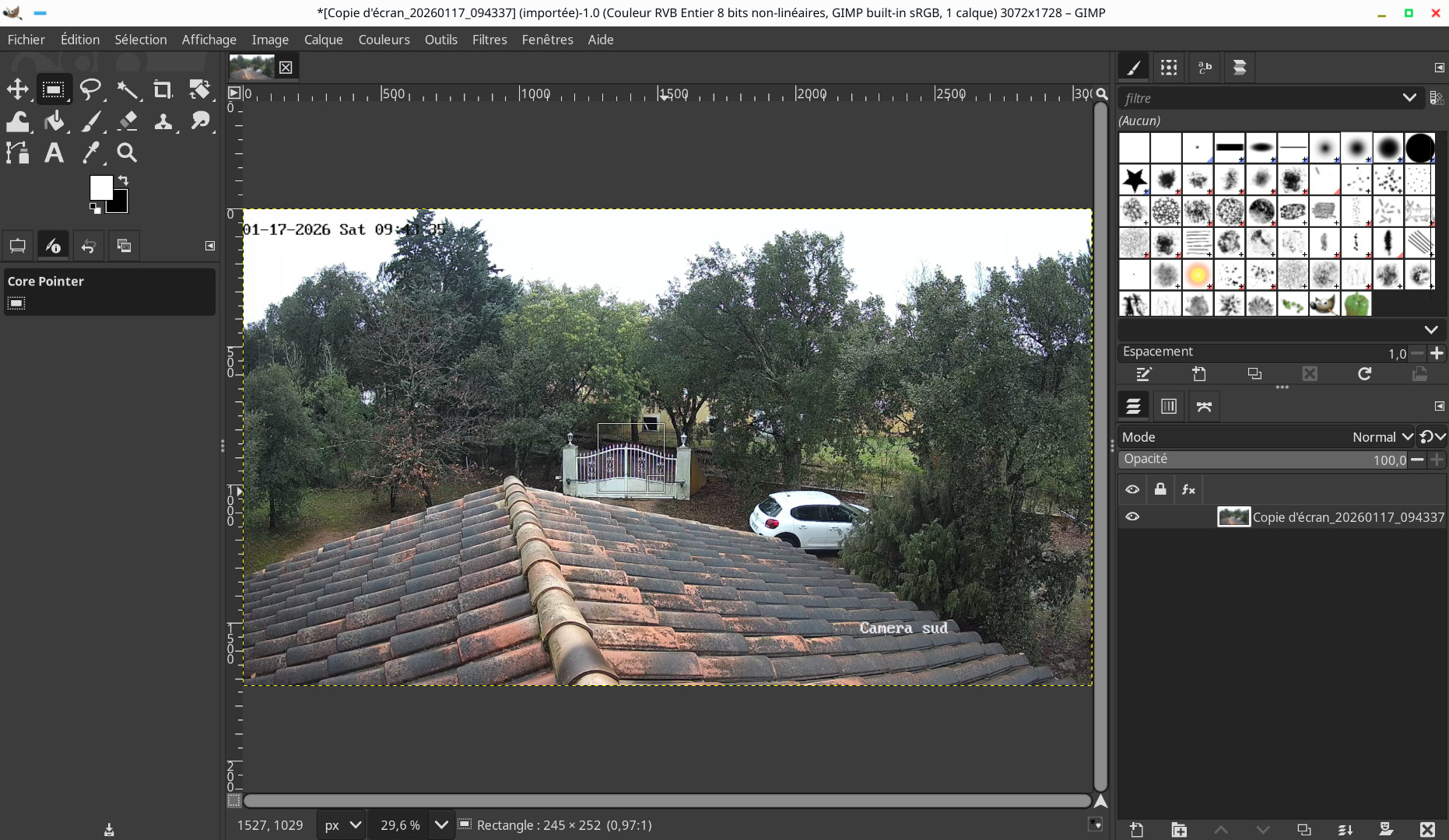

Using the selection tool, draw the min and
max boxes to detect a car (for example). The width and
height appear at the bottom center Rectangle:
245x252
The minimum detection box parameter is min_area and has a value of width*height, so for the example above, min_area=245x252=61470. The same applies to the max_area parameter. In practice, I set for a car
min_area 22000
max_area 230000
for a person
min_area 6000
max_area 30000
which gives us
the following in
config.yaml
filters:
car:
min_score: .7
threshold: .9
min_area: 22000
max_area: 230000
person:
min_score: .7
threshold: .8
min_area: 6000
max_area: 3000
Enable
face detection
To
enable face detection, we will first add the corresponding
section to the config.yaml file.
face_recognition:
enabled: true
And
for the cameras in question, we will add the mention face in the track subsection.
objects:
track:
- person
- dog
- cat
- bicycle
- car
- motorcycle
- face
Frigate is restarted and the logs return the following messages
2025-11-02 11:20:57.493001613
[2025-11-02 11:20:57]
frigate.config.config
WARNING : Camera-entree is configured to track ['face']
objects, which are not supported by the current model.
2025-11-02 11:20:57.495025758 [2025-11-02
11:20:57]
frigate.config.config
WARNING : Camera-piscine is configured to track ['face']
objects, which are not supported by the current model.
2025-11-02 11:20:57.519957917 [2025-11-02
11:20:57]
frigate.app
INFO : Starting Frigate (0.16.1-e664cb2)
2025-11-02 11:20:57.520656637 [2025-11-02
11:20:57]
frigate.app
INFO : Creating directory:
/media/frigate/clips/faces
(...)
2025-11-02 11:20:58.822822712
[2025-11-02 11:20:58]
frigate.api.fastapi_app
INFO : FastAPI started
2025-11-02 11:21:00.117012864 [2025-11-02
11:21:00]
frigate.util.downloader
INFO : Downloading complete:
https://github.com/NickM-27/facenet-onnx/releases/download/v1.0/facenet.tflite
2025-11-02 11:21:00.269584095 [2025-11-02
11:21:00] frigate.detectors.plugins.edgetpu_tfl
INFO : TPU found
2025-11-02 11:21:00.270930420 INFO: Created
TensorFlow Lite XNNPACK delegate for CPU.
2025-11-02 11:21:03.456767865 [2025-11-02
11:21:03]
frigate.util.downloader
INFO : Downloading complete:
https://github.com/NickM-27/facenet-onnx/releases/download/v1.0/landmarkdet.yaml
A
Face Library icon appears
And here's what it will look like when it identifies people.
, you can confirm the detection by
clicking on the people that were created previously.
More information here https://docs.frigate.video/configuration/face_recognition .
Implementing an object classification system
This
feature, introduced in version 0.17.0, allows you
to create subcategories of objects. In the example
below, I'll differentiate between the cats my
cameras usually see. In the main window, click the
Classification icon.
We will create a subcategory of an
existing object, here resident cats,
distinguishing between cats
Next, you will need to select the
images that correspond to Plumette the cat and the
same for the other cat.
2026-03-15 13:53:54.922614420 [2026-03-15 13:53:54] frigate.util.classification INFO : Wrote training metadata for Voitures: 32 images
2026-03-15 13:53:54.922912195 [2026-03-15 13:53:54] frigate.util.classification INFO : Finished training Voitures
2026-03-15 13:53:55.004893124 [2026-03-15 13:53:54] frigate.data_processing.real_time.custom_classification INFO : Successfully loaded updated model for Voitures
2026-03-15 13:53:55.028924711 192.168.2.14 - - [15/Mar/2026:13:53:55 +0100] "GET /api/classification/Voitures/dataset HTTP/1.1" 200 1399 "http://192.168.2.11:8971/classification" "Mozilla/
5.0 (X11; Linux x86_64; rv:148.0) Gecko/20100101 Firefox/148.0" "-" request_time="0.004" upstream_response_time="0.003"
From there the objects will be identified by the subcategories thus created.
More information here: https://docs.frigate.video/configuration/custom_classification/object_classification
Establish a state classification system
This
feature, introduced in version 0.17.0,
allows you to distinguish the state of a
particular object, such as whether a
door or gate is open. In this example, I
will consider the gate's open or closed
state. In the main window, select the Classification icon.
More information is available here: https://docs.frigate.video/configuration/custom_classification/state_classification
Connecting
an ONVIF-compatible PTZ camera
Camera-est:
ffmpeg:
inputs:
- path: rtsp://user:motdepasse@192.168.2.187:554/11
roles:
- detect
- record
hwaccel_args: []
onvif:
host: 192.168.2.187
port: 8080
user: "user"
password: "motdepasse"
Restart Frigate, and the commands will appear in the interface.
2025-12-14 16:23:19.863412328 [2025-12-14 16:23:19] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.move_down for Camera-est
2025-12-14 16:23:20.014362034 [2025-12-14 16:23:20] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.stop for Camera-est
2025-12-14 16:23:24.154372463 [2025-12-14 16:23:24] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.move_left for Camera-est
2025-12-14 16:23:24.324886496 [2025-12-14 16:23:24] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.stop for Camera-est
2025-12-14 16:23:27.660911995 [2025-12-14 16:23:27] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.move_left for Camera-est
2025-12-14 16:23:27.831550797 [2025-12-14 16:23:27] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.stop for Camera-est
2025-12-14 16:23:31.340495182 [2025-12-14 16:23:31] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.move_left for Camera-est
2025-12-14 16:23:31.471007427 [2025-12-14 16:23:31] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.stop for Camera-est
2025-12-14 16:23:35.053131483 [2025-12-14 16:23:35] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.move_left for Camera-est
2025-12-14 16:23:35.203476745 [2025-12-14 16:23:35] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.stop for Camera-est
2025-12-14 16:23:38.560508556 [2025-12-14 16:23:38] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.move_left for Camera-est
2025-12-14 16:23:38.691835827 [2025-12-14 16:23:38] frigate.comms.dispatcher INFO : Setting ptz command to OnvifCommandEnum.stop for Camera-est
Add
a Let's Encrypt certificat
Using
a Apache httpd server
By default, Frigate
generates a self-signed certificate to use port
8971, which triggers a security warning in the
browser. In Firefox ,
you can accept the risk to access it. But this
isn't ideal, especially if you're accessing Frigate
from the internet. In the configuration
presented here, we'll use Apache,
not Nginx as
is often suggested. For Let's
Encrypt
configuration with
Apache,
see this page.
The
principle is as follows:
Internet
-> HTTPS port 443 -> reverse proxy ->
internal HTTP -> Frigate port 8971
Apache acts as a reverse proxy, meaning it allows access to an internal URL by automatically modifying the URL and pointing to the correct port. My internet-accessible address is https://adresseperso.ddns.net, which already points to an index.html page . This configuration therefore allows access to Frigate at https://adresseperso.ddns.net/frigate
In the Apache configuration file httpd.conf ,
the following modules will be enabled:
LoadModule proxy_module
modules/mod_proxy.so
LoadModule proxy_http_module
modules/mod_proxy_http.so
and we will add the virtual host
<VirtualHost
192.168.2.13:443>
ServerName
adresseperso.ddns.net
SSLEngine on
SSLCertificateFile
/etc/letsencrypt/live/adresseperso.ddns.net/fullchain.pem
SSLCertificateKeyFile
/etc/letsencrypt/live/adresseperso.ddns.net/privkey.pem
ProxyPreserveHost
On
ProxyRequests
Off
# Redirection vers Frigate
sur port 8971
ProxyPass
/frigate http://127.0.0.1:8971/frigate
ProxyPassReverse
/frigate http://127.0.0.1:8971/frigate
# Websocket support
RewriteEngine
On
RewriteCond
%{HTTP:Upgrade} =websocket [NC]
RewriteRule
^/frigate/(.*) ws://127.0.0.1:8971/frigate/$1
[P,L]
</VirtualHost>
We restart Apache by
typing `systemctl
restart httpd`
In the docker-compose.ym
file ,
we will modify the default path in
the environment section by adding
FRIGATE_BASE_PATH: "/frigate"
To apply the changes, stop Frigate by typing docker stop frigate, then run
docker compose -f docker-compose.yml up -d
and restart Frigate by typing
docker start frigate
Using Traefik
We'll use Traefik as a reverse
proxy ; it will manage the Let's
Encrypt certificate and redirect
secure traffic to Frigate .
Another configuration detail: in my setup, I have
two servers.
- Apache server,
local address 192.168.2.13, accessible via myapacheserver.ddns.net
- Frigate server,
local address 192.168.2.11, accessible via myfrigateserver.ddns.net
Traefik will be
hosted on the Frigate
server and will also manage the Let's
Encrypt
certificate and the redirection of secure
traffic to the Apache server.
On the modem/router, you need to open a route to the
Traefik server
with the local address 192.168.2.11, using ports 80
(for automatic certificate renewal) and 443. You
will also need to open the same ports using Shorewall on the
Traefik machine
.
It is
not necessary to open a route on the router to port
8971 (for login/password connections to Frigate) or
port 5000 (for login/password connections to
Frigate).
Centralization:
Traefik becomes
the sole entry point. Ports 80 and 443 are only opened
on the PC running Docker/Traefik.
SSL
for all: The Apache
httpd server
will also automatically benefit from the
secure HTTPS (SSL) connection, even if it doesn't
manage it itself. Traefik handles
decryption and redirects to the insecure HTTP
connection to the Apache server
on the local network.
Automatic renewal: Since
port 80 points to Traefik, Let's
Encrypt can
renew the Frigate
and Apache
certificates without any intervention.
In summary, the principle for relaying to
Apache is as follows.
Internet -> HTTPS port 443 -> reverse proxy -> HTTP interne -> Apache port 80
For Frigate, it's a
little different because, since we connect to its
port 8971 with an encrypted connection, Traefik
will need to accept Frigate's
self-signed certificate. This
requires some additional configuration, particularly
with the Shorewall
firewall . The connection principle is as follows:
Internet -> HTTPS port 443 ->
reverse proxy -> HTTPS interne -> Frigate port
8971
Regarding authentication, traefik will manage the login/password and transmit them to frigate without the need to re-enter them via the frigate login screen .
Let's start by creating a
/etc/traefik
directory, then navigate to it and create an
empty acme.json file
with 600 permissions; it will contain the
certificates.
chmod 600 acme.json
Then, we will create a traefik.yml file containing the following :
api:
dashboard: true # Active l'interface de contrôle sur le port 8080
insecure: true # Permet l'accès direct via le port 8080 sans SSL
# cela permet d'accepter le certicat autosigné de Frigate
serversTransport:
insecureSkipVerify: true
entryPoints:
web:
address: ":80"
http:
redirections:
entryPoint:
to: websecure
scheme: https
websecure:
address: ":443"
certificatesResolvers:
myresolver:
acme:
email: olivier.hoarau@funix.org
storage: acme.json
httpChallenge:
entryPoint: web
providers:
docker:
exposedByDefault: false # Sécurité : n'expose que les conteneurs avec le label 'enable=true'
file:
filename: dynamic_conf.yml # Ajoute la prise en charge du serveur Apache
watch: true
In the same place, we now create a dynamic_conf.yml file which will contain
http:
# 1. TRANSPORTS (Pour ignorer les erreurs de certificat auto-signé de Frigate)
serversTransports:
ignore-ssl:
insecureSkipVerify: true
# 2. ROUTERS (Configuration pour Apache)
routers:
to-apache:
rule: "Host(`monserveurapache.ddns.net`)"
service: apache-service
entryPoints:
- websecure
tls:
certresolver: myresolver
# 3. SERVICES (Cibles réseau pour apache)
services:
apache-service:
loadBalancer:
servers:
- url: "http://192.168.2.13:80"
# 4. MIDDLEWARES (Centralisation de l'auth pour Frigate)
middlewares:
frigate-auth:
basicAuth:
# liste des utilisateurs avec htpasswd
users:
- "frigateadmin:password-hash"
- "frigateuser:password-hash"
frigate-header:
headers:
customRequestHeaders:
# Traefik v3 utilise cette syntaxe pour injecter l'utilisateur authentifié
x-forwarded-user: '{{ printf "{{.RemoteUser}}" }}'
x-forwarded-groups: "admin"
We will create the password by typing
docker run --rm httpd:alpine htpasswd -nb frigateuser password
this should directly give something like frigateuser:password-hash and it will be enough to copy and paste it into the file above.The command below should give the same result :
echo $(/usr/local/apache2/bin/htpasswd -nB useradmin) | sed -e 's/\$/\$\$/g'
We will now create docker-compose.yml
services:
traefik:
image: traefik:v3.0
command:
- "--providers.docker=true"
- "--serversTransport.insecureSkipVerify=true"
container_name: traefik
restart: always
ports:
- "80:80"
- "443:443"
- "8080:8080" # Dashboard (à protéger en production)
volumes:
- /var/run/docker.sock:/var/run/docker.sock:ro
- ./traefik.yml:/traefik.yml:ro
- ./dynamic_conf.yml:/dynamic_conf.yml:ro
- ./acme.json:/acme.json
networks:
- proxy
networks:
proxy:
external: true
We now modify the Docker configuration file of /etc/frgate/config/docker-compose.yml frigate Here is the full text with the commented lines
services:
frigate:
container_name: frigate
privileged: true # this may not be necessary for all setups
#network_mode: host
restart: unless-stopped
stop_grace_period: 30s # allow enough time to shut down the various services
image: ghcr.io/blakeblackshear/frigate:0.17.0
shm_size: "540mb" # update for your cameras based on calculation above
devices:
- /dev/bus/usb:/dev/bus/usb # Passes the USB Coral, needs to be modified for other versions
- /dev/dri/renderD128:/dev/dri/renderD128 # For intel hwaccel, needs to be updated for your hardware
volumes:
- /etc/localtime:/etc/localtime:ro
- /etc/frigate/config:/config
- /media/frigate:/media/frigate
- type: tmpfs # Optional: 1GB of memory, reduces SSD/SD Card wear
target: /tmp/cache
tmpfs:
size: 1000000000
ports:
- "8971:8971"
#- "5000:5000" # Internal unauthenticated access. Expose carefully.
- "8554:8554" # RTSP feeds
- "8555:8555/tcp" # WebRTC over tcp
- "8555:8555/udp" # WebRTC over udp
environment:
#- FRIGATE_BASE_PATH="/frigate"
- PLUS_API_KEY=clé-frigate-plus
- FRIGATE_AUTH_METHOD=proxy
- FRIGATE_PROXY_HEADER=Remote-User
- FRIGATE_TRUSTED_PROXIES=172.18.0.0/16
networks:
- proxy # Doit être sur le même réseau que Traefik
labels:
- "traefik.enable=true"
- "traefik.http.routers.frigate.rule=Host(`monserveurfrigate.ddns.net`)"
- "traefik.http.routers.frigate.entrypoints=websecure"
- "traefik.http.routers.frigate.tls.certresolver=myresolver"
# Appelle les middlewares définis dans le fichier (d'où le @file)
- "traefik.http.routers.frigate.middlewares=frigate-auth@file,frigate-header@file"
# Configuration du service vers le port 8971
- "traefik.http.services.frigate-service.loadbalancer.server.port=8971"
- "traefik.http.services.frigate-service.loadbalancer.server.scheme=https"
# UTILISATION DU TRANSPORT DEFINI DANS LE FICHIER DYNAMIQUE
- "traefik.http.services.frigate-service.loadbalancer.serverstransport=ignore-ssl@file"
networks:
proxy:
external: true
in the /etc/frigate/config/config.yaml file we will have
tls:
enabled: true
auth:
enabled: true
proxy:
header_map:
user: x-forwarded-user
role: x-forwarded-groups
Before launching Traefik and restarting Frigate, you'll need to create the Docker network with the name proxy by typing
docker network create proxy
This will give you the proxy network's identification number, a long string of numbers and letters. I then simplified the Apache configuration by removing all VirtualHosts associated with my address monserveurapache.ddns.net and all automatic port forwarding from port 80 to 443. Since Traefik will now send requests to Apache via HTTP (port 80) on your local network, I've re-enabled it to listen on the default port 80.
Let's now move on to configuring shorewall under /etc/shorewall. First, in the shorewall.conf file, ensure you have
DOCKER=Yes
DOCKER_BRIDGE=docker0
IP_FORWARDING=Keep
ROUTE_FILTER=No
file Interfaces
#
# Shorewall -- /etc/shorewall/interfaces
#
# For information about entries in this file, type "man shorewall-interfaces"
#
# The manpage is also online at
# https://shorewall.org/manpages/shorewall-interfaces.html
#
?FORMAT 2
loc enp1s0 dhcp,nosmurfs,routefilter
# We use 'physical' to prevent Shorewall from search for the broadcast
dock docker0 physical=docker+,routeback=1
dock br physical=br-+,routeback=1
file zones
#
# Shorewall -- /etc/shorewall/zones
#
# For information about this file, type "man shorewall-zones"
#
# The manpage is also online at
# https://shorewall.org/manpages/shorewall-zones.html
#
###############################################################################
#ZONE TYPE OPTIONS IN_OPTIONS OUT_OPTIONS
fw firewall
dock ipv4
net ipv4
ipv4 loc
file policy
#
# Shorewall -- /etc/shorewall/policy
#
# For information about entries in this file, type "man shorewall-policy"
#
# The manpage is also online at
# https://shorewall.org/manpages/shorewall-policy.html
#
###############################################################################
dock $FW ACCEPT
dock dock ACCEPT
dock net ACCEPT
fw all ACCEPT
loc all ACCEPT
all all REJECT
#
# Shorewall -- /etc/shorewall/snat
#
# For information about entries in this file, type "man shorewall-snat"
#
# See https://shorewall.org/manpages/shorewall-snat.html for more information
#
?FORMAT 2
###################################################################################################################################################
#ACTION SOURCE DEST PROTO DPORT SPORT IPSEC MARK USER SWITCH ORIGDEST PROBABILITY
MASQUERADE 172.18.0.0/16 enp1s0
MASQUERADE 172.17.0.0/16 enp1s0
file rules
# Shorewall -- /etc/shorewall/rules
#
# For information on the settings in this file, type "man shorewall-rules"
#
# The manpage is also online at
# https://shorewall.org/manpages/shorewall-rules.html
#
##############################################################################################################################################################
#ACTION SOURCE DEST PROTO DPORT SPORT ORIGDEST RATE USER MARK CONNLIMIT TIME HEADERS SWITCH HELPER
#INCLUDE rules.drakx
# ==============================================================================
# 1. FLUX DOCKER (FRIGATE / TRAEFIK INTERNAL)
# ==============================================================================
# Communication entre l'hôte et les conteneurs (Port Frigate+)
ACCEPT $FW dock:172.18.0.0/16 tcp 8971
ACCEPT dock:172.18.0.0/16 $FW tcp 8971
# Sortie DNS pour les conteneurs (indispensable pour Frigate+)
ACCEPT dock:172.18.0.0/16 net udp 53
ACCEPT dock:172.18.0.0/16 net tcp 53
# Sortie HTTPS pour les conteneurs (Upload photos Frigate+)
ACCEPT dock:172.18.0.0/16 net tcp 443
# ==============================================================================
# 2. ACCÈS TRAEFIK (HTTP/HTTPS)
# ==============================================================================
# On autorise le Web depuis Internet ET depuis le réseau local
# Note : On utilise $FW car 192.168.2.11 est l'IP de cette machine.
ACCEPT net $FW tcp 80,443
ACCEPT loc $FW tcp 80,443
# Ports spécifiques (WebRTC / Go2RTC)
ACCEPT net $FW tcp 8555
ACCEPT net $FW udp 8555
ACCEPT loc $FW tcp 8555
ACCEPT loc $FW udp 8555
# Redirection du trafic Web vers le conteneur Traefik
DNAT net dock:172.18.0.2 tcp 80,443
DNAT loc dock:172.18.0.2 tcp 80,443
# ==============================================================================
# 3. ACCÈS LOCAL & ADMINISTRATION (SSH, MQTT, FRIGATE UI)
# ==============================================================================
# Autorise ton LAN à administrer le serveur
ACCEPT loc $FW tcp 22,1883,5000,8080,8971,8554
ACCEPT loc $FW udp 554,2049,8000
ACCEPT loc $FW icmp
# ==============================================================================
# 4. SORTIE SERVEUR (PING & MAJ)
# ==============================================================================
ACCEPT $FW net icmp
ACCEPT $FW net tcp 80,443
ACCEPT $FW net udp 53
# ==============================================================================
# 5. FLUX DOCKER VERS LAN (POUR APACHE EXTERNE)
# ==============================================================================
# Autorise Traefik (zone dock) à joindre Apache (zone loc)
ACCEPT dock:172.18.0.0/16 loc:192.168.2.13 tcp 80
# ==============================================================================
# 6. FLUX FRIGATE -> CAMÉRAS (RÉSEAU LOCAL)
# ==============================================================================
# Autorise Frigate à lire les flux RTSP (vidéo) et HTTP (commandes/snapshot)
ACCEPT dock:172.18.0.0/16 loc tcp 554,80,81,8000,8554
ACCEPT dock:172.18.0.0/16 loc udp 554,8000-8010
we restarting shorewall
Now we're going to launch Traefik ; under /etc/traefik we will type
docker compose up -d
and we restart the frigate configuration by typing
docker stop frigate
cd /etc/frigate/config
docker compose down
docker compose up -d
To see if it works, we can type
docker network inspect proxy
here is the result
[
{
"Name": "proxy",
"Id": "id-reseau-proxy",
"Created": "2026-03-21T07:40:45.423464906+01:00",
"Scope": "local",
"Driver": "bridge",
"EnableIPv4": true,
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": {},
"Config": [
{
"Subnet": "172.18.0.0/16",
"Gateway": "172.18.0.1"
}
]
},
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": false,
"Containers": {
"1935c6946444a4be193c3fc3cf89ad4e00d76b0dace34c032266c72a36789caf": {
"Name": "frigate",
"EndpointID": "e3630a1c73245a57c88048edbb1c9e49dee86d925ff8a735c42827b1b4959823",
"MacAddress": "06:fa:01:8a:b1:5a",
"IPv4Address": "172.18.0.2/16",
"IPv6Address": ""
},
"564a20b201a1adf544020be253b267f5472c3cceec0cdc31f208b4f02089141e": {
"Name": "traffic",
"EndpointID": "671f4968920ec3497c8bbfe8855c99e10626907159abc374bf5d0be8ea555bbd",
"MacAddress": "46:2e:a8:5b:bc:ec",
"IPv4Address": "172.18.0.3/16",
"IPv6Address": ""
}
},
"Options": {},
"Labels": {}
}
]
instances are clearly visible. The Traefik and Frigate are indeed on the same proxy network.
You can now go to http://192.168.2.11:8080 to dashboard see the Traefik, we can check if the routes are active and the certificates are valid.
If needed, view the acme.json file ; you should find your certificates there, and we can display the Traefik logs by typing
docker logs -f traefik
Perform
an update
docker stop frigate
We now edit the docker-compose.yml file and specify the latest stable version in the image section
services:
frigate:
(...)
image: ghcr.io/blakeblackshear/frigate:0.17.0
The modification is taken into account by typing
docker compose up -d
This is what it looks like
[+] Running 11/11
✔ frigate 10 layers [⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿] 0B/0B Pulled 160.9s
✔ 4831516dd0cb Pull complete 1.9s
✔ 4f4fb700ef54 Pull complete 1.2s
✔ cb7d423543ee Pull complete 19.8s
✔ d2f5da7ad830 Pull complete 2.6s
✔ 7e04514a5073 Pull complete 32.6s
✔ 34300798769b Pull complete 5.7s
✔ 2ad10e3dbd66 Pull complete 18.0s
✔ 848dd1cbc10e Pull complete 18.5s
✔ 8226412a03ca Pull complete 19.0s
✔ b22355f413a7 Pull complete 19.8s
[+] Running 2/2
✔ Container frigate Started 12.1s
! frigate Published ports are discarded when using host network mode 0.0s
and we can see in the logs that it is indeed taken into account by typing
docker logs frigate
we can see
If you have the error
[2026-02-27 18:03:15] frigate.api.auth ERROR : Error parsing jwt: bad_signature:
You will need to stop Frigate and delete the file /etc/frigate/config/.jwt_secret and clear the cache of the browser that accesses Frigate and relaunch Frigate.
For the following error
2026-02-27 18:03:15.508446035 Fatal Python error: Illegal instruction
2026-02-27 18:03:15.508451526
2026-02-27 18:03:15.508494078 Thread 0x00007f2970ce66c0 (most recent call first):
2026-02-27 18:03:15.508587864 File "/usr/lib/python3.11/threading.py", line 320 in wait
2026-02-27 18:03:15.508683237 File "/usr/lib/python3.11/queue.py", line 171 in get
2026-02-27 18:03:15.508775665 File "/usr/local/lib/python3.11/dist-packages/playhouse/sqliteq.py", line 162 in loop
2026-02-27 18:03:15.508860665 File "/usr/local/lib/python3.11/dist-packages/playhouse/sqliteq.py", line 137 in run
2026-02-27 18:03:15.508965544 File "/usr/local/lib/python3.11/dist-packages/playhouse/sqliteq.py", line 272 in run
2026-02-27 18:03:15.509051339 File "/usr/lib/python3.11/threading.py", line 975 in run
2026-02-27 18:03:15.509143141 File "/usr/lib/python3.11/threading.py", line 1038 in _bootstrap_inner
2026-02-27 18:03:15.509234196 File "/usr/lib/python3.11/threading.py", line 995 in _bootstrap
2026-02-27 18:03:15.509249695
2026-02-27 18:03:15.509286238 Current thread 0x00007f299b08a040 (most recent call first):
2026-02-27 18:03:15.509368220 File "<frozen importlib._bootstrap>", line 241 in _call_with_frames_removed
2026-02-27 18:03:15.509501615 File "<frozen importlib._bootstrap_external>", line 1233 in create_module
2026-02-27 18:03:15.509584820 File "<frozen importlib._bootstrap>", line 573 in module_from_spec
(...)
2026-02-27 18:03:15.514956630 File "/usr/lib/python3.11/multiprocessing/spawn.py", line 133 in _main
2026-02-27 18:03:15.514958723 File "/usr/lib/python3.11/multiprocessing/forkserver.py", line 313 in _serve_one
2026-02-27 18:03:15.514960962 File "/usr/lib/python3.11/multiprocessing/forkserver.py", line 274 in main
2026-02-27 18:03:15.514962618 File "<string>", line 1 in <module>
In Frigate 0.17, the new embedding features (semantic search, facial recognition, etc.) use more complex AI models via TensorFlow and Jina. These libraries are compiled for instructions modern processors supporting AVX/AVX2. To find out if your processor has these instructions you have to type
grep -o 'avx[^ ]*' /proc/cpuinfo
If nothing comes out, it means the processor is too slow. In the past, disabling semantic search was sufficient to resolve the problem in the config.yaml file.
Use
Classic use
Now let's
return to the main interface. We saw earlier that the main
view links to the camera views; it is accessible by clicking
on the icon representing a camera on the left.
Clicking on the Event Review on the left
displays all recent events (alerts, detections, movement). The
detected object appears as an icon in the top left corner of
the image; you can access the replay by clicking on the image.
You can save the review by clicking on Mark these items
as reviewed at the bottom.
When you click on a detection image you can
view the kinematics of the object in more detail with
the detection parameters which can be used to refine
the frigate
configuration .
You can
delete them one by one using the context menu, or in
batches with CTRL-A and then the Delete button in
the top right corner.
As we saw earlier , we
could access the system resource status via the Settings->System->System
Metrics menu ;
there is also a Storage tab that
provides a status of recordings
For the rest, I refer you to the Frigate
documentation for usage instructions, which includes
some useful URLs.
https://docs.frigate.video/guides/getting_started
https://community.jeedom.com/t/tuto-integrer-frigate-et-faire-de-la-reconnaissance-video-dobjet-par-ia-en-local-dans-son-jeedom/117108
https://www.simplehomelab.com/frigate-docker-guide/
View Frigate from a mobile device
Regarding remote viewing on a mobile device, there is indeed an unofficial Android application, but I don't really see the point because simply accessing the address directly (once it's made accessible on the internet) from a mobile browser is quite user-friendly, as you can see below.
Notifications
with Signal via MQTT
Presentation
Frigate already integrates an email notification service, as mentioned above, which doesn't work for me, but regardless, this paragraph explains how to receive alert notifications with Signal using the MQTT service. MQTT (Message Queuing Telemetry Transport) is a messaging protocol that works on a subscription/publish basis, meaning that a server (or broker) can publish notifications on a channel, and clients can subscribe to view them. With Frigate, by enabling MQTT, you can run a script that triggers an action upon receiving an event, such as an alert. It's also possible to make the MQTT broker accessible from the internet, and an Android MQTT client application can be installed to receive alerts.Mosquito
Installation
The
official website is https://mosquitto.org.
On my Mageia system, I simply installed it by typing urpmi
mosquitto. We created a user with
their password: mosquitto_passwd -c /etc/mosquitto/passwd olivier
Password:
Re-enter password:
in the file /etc/mosquitto/mosquitto.conf we uncommented and modified the following two lines:
allow_anonymous false
password_file /etc/mosquitto/passwd
listener 1883 0.0.0.0
We changed the owner of the passwd file :
chown mosquitto:mosquitto /etc/mosquitto/passwd
We can then launch mosquitto with
systemctl start mosquitto
Here is the output of the command systemctl status mosquitto
● mosquitto.service - Mosquitto MQTT Broker
Loaded: loaded (/usr/lib/systemd/system/mosquitto.service; disabled; preset: disabled)
Active: active (running) since Sun 2025-12-07 09:14:56 CET; 2min 12s ago
Docs: man:mosquitto.conf(5)
man:mosquitto(8)
Process: 1426932 ExecStartPre=/bin/mkdir -m 740 -p /var/log/mosquitto (code=exited, status=0/SUCCESS)
Process: 1426933 ExecStartPre=/bin/chown mosquitto:mosquitto /var/log/mosquitto (code=exited, status=0/SUCCESS)
Process: 1426934 ExecStartPre=/bin/mkdir -m 740 -p /run/mosquitto (code=exited, status=0/SUCCESS)
Process: 1426935 ExecStartPre=/bin/chown mosquitto:mosquitto /run/mosquitto (code=exited, status=0/SUCCESS)
Main PID: 1426936 (mosquitto)
Tasks: 1 (limit: 18901)
Memory: 1004.0K
CPU: 43ms
CGroup: /system.slice/mosquitto.service
└─1426936 /usr/sbin/mosquitto -c /etc/mosquitto/mosquitto.conf
déc. 07 09:14:56 ultra.kervao.fr systemd[1]: Starting mosquitto.service...
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: mosquitto version 2.0.21 starting
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: Config loaded from /etc/mosquitto/mosquitto.conf.
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: Starting in local only mode. Connections will only be possible from clients running on this machine.
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: Create a configuration file which defines a listener to allow remote access.
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: For more details see https://mosquitto.org/documentation/authentication-methods/
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: Opening ipv4 listen socket on port 1883.
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: Opening ipv6 listen socket on port 1883.
déc. 07 09:14:56 ultra.kervao.fr mosquitto[1426936]: 1765095296: mosquitto version 2.0.21 running
déc. 07 09:14:56 ultra.kervao.fr systemd[1]: Started mosquitto.service.
mosquitto_sub -v -t 'test/topic' -u olivier -P password
Now we will launch a broker by publishing a notification:
mosquitto_pub -u olivier -P password -t 'test/topic' -m 'helloWorld'
and from the client we will see test/topic helloWorld displayed. Note that the broker runs on the server where Frigate is located, the whole thing runs locally and I don't need it to be accessible from the internet.
Frigate
configuration and alert management scripts
Now,
in the Frigate configuration file config.yaml,
we'll enable MQTT
: mqtt:
enabled: true
host: localhost
user: olivier
password: motdepasse
port: 1883
We'll create the listening script /usr/local/bin/alerte_frigate which will send an email as soon as there's an alert. We'll see about Signal later.
#!/bin/bash
mosquitto_sub -t "frigate/events" -u olivier -P motdepasse | while read -r payload
do
#à décommenter pour visualiser pour des tests de fonctionnemnet
#echo "Rx MQTT: ${payload}"
#envoi d'un mail pour chaque nouveau évènement
if echo "${payload}" | grep -q '"type": "new"'; then
echo "${payload}" | mail -s "Frigate alerte" olivier
fi
done
The email will contain
{"before": {"id": "1765103169.376268-4ybyyv", "camera": "Camera-sud", "frame_time": 1765103169.376268, "snapshot": null, "label": "car", "sub_label": null, "top_score": 0.0, "false_positive": true, "start_time": 1765103169.376268, "end_time": null, "score": 0.9765625, "box": [1876, 1001, 2407, 1285], "area": 150804, "ratio": 1.869718309859155, "region": [1356, 0, 3072, 1716], "active": true, "stationary": false, "motionless_count": 0, "position_changes": 0, "current_zones": [], "entered_zones": [], "has_clip": false, "has_snapshot": false, "attributes": {}, "current_attributes": [], "pending_loitering": false, "max_severity": null, "current_estimated_speed": 0, "average_estimated_speed": 0, "velocity_angle": 0, "path_data": [], "recognized_license_plate": null}, "after": {"id": "1765103169.376268-4ybyyv", "camera": "Camera-sud", "frame_time": 1765103169.59021, "snapshot": {"frame_time": 1765103169.376268, "box": [1876, 1001, 2407, 1285], "area": 150804, "region": [1356, 0, 3072, 1716], "score": 0.9765625, "attributes": [], "current_estimated_speed": 0, "velocity_angle": 0, "path_data": [], "recognized_license_plate": null, "recognized_license_plate_score": null}, "label": "car", "sub_label": null, "top_score": 0.9765625, "false_positive": false, "start_time": 1765103169.376268, "end_time": null, "score": 0.9765625, "box": [1872, 1003, 2411, 1287], "area": 153076, "ratio": 1.897887323943662, "region": [1356, 0, 3072, 1716], "active": true, "stationary": false, "motionless_count": 1, "position_changes": 0, "current_zones": [], "entered_zones": [], "has_clip": false, "has_snapshot": false, "attributes": {}, "current_attributes": [], "pending_loitering": false, "max_severity": null, "current_estimated_speed": 0, "average_estimated_speed": 0, "velocity_angle": 0, "path_data": [[[0.6969, 0.7448], 1765103169.59021]], "recognized_license_plate": null}, "type": "new"}
Here's a more advanced script (thanks ChatGPT !!) that will send an alert email only for person and car objects, attaching a snapshot with the outline around the object. It will require the installation of the jq package, which will allow for easier extraction of useful information.
#!/bin/bash
# /usr/local/bin/alerte_frigate
# Attendre que le clip soit complètement écrit (taille stable) avant envoi
#paramètres de connexion MQTT"
MQTT_USER="olivier"
MQTT_PASS="motdepasse"
MQTT_TOPIC="frigate/events"
#paramètre de connexion API FRIGATE
FRIGATE_USER="loginfrigate"
FRIGATE_PASS="motdepasse"
FRIGATE_API="https://192.168.2.11:8971"
COOKIE_FILE="/tmp/frigate_cookies.txt"
CLIP_DIR="/media/frigate/clips"
MAIL_FROM="webmaster@funix.org"
MAIL_TO="olivier.hoarau@funix.org"
THROTTLE_SECONDS=40 # délai minimum entre deux alertes par caméra
THROTTLE_DIR="/var/tmp/frigate_throttle"
mkdir -p "$THROTTLE_DIR"
SIGNAL_USER="+336XXXXXXXX" # ton numéro Signal
SIGNAL_DEST="+336YYYYYYYY" # numéro qui reçoit les alertes
LOGGER_TAG="alerte_frigate"
### --- LOG FUNCTION ---
log() { logger -t "$LOGGER_TAG" "[INFO] $*"; }
log_warn(){ logger -t "$LOGGER_TAG" "[WARN] $*"; }
log_dbg() { logger -t "$LOGGER_TAG" "[DEBUG] $*"; }
log "Démarrage du service."
# Paramètres d'attente pour la stabilité du fichier
WAIT_MAX_SECS=20 # temps max d'attente pour que le fichier soit complet
CHECK_STEP=0.5 # intervalle entre deux vérifs de taille (sec)
STABLE_ROUNDS=2 # nombre de mesures identiques successives pour considérer "stable"
# Fonction qui permet une alerte max par caméra toutes les THROTTLE_SECONDS secondes
should_throttle() {
local cam="$1"
local now
now=$(date +%s)
local file="$THROTTLE_DIR/$cam.last"
# Si jamais aucun envoi encore
if [ ! -f "$file" ]; then
echo "$now" > "$file"
return 1 # PAS de throttle
fi
local last
last=$(cat "$file")
local delta=$((now - last))
if [ "$delta" -lt "$THROTTLE_SECONDS" ]; then
# throttle actif
return 0
fi
# assez de temps écoulé, mise à jour
echo "$now" > "$file"
return 1
}
# Premier login au lancement du script
#login_frigate
mosquitto_sub -t "$MQTT_TOPIC" -u "$MQTT_USER" -P "$MQTT_PASS" | while read -r payload
do
# Ne traiter que les "new"
if echo "$payload" | jq -e . >/dev/null 2>&1; then
if ! echo "$payload" | grep -q '"type"[[:space:]]*:[[:space:]]*"new"'; then
continue
fi
else
continue
fi
# Extraire infos
camera=$(echo "$payload" | jq -r '.after.camera // .camera // empty')
label=$(echo "$payload" | jq -r '.after.label // "inconnu"')
id=$(echo "$payload" | jq -r '.after.id // .id // empty')
# THROTTLE PAR CAMERA
if should_throttle "${camera}"; then
log_dbg "Throttle actif : alerte ignorée sur ${camera} (moins de $THROTTLE_SECONDS secondes)"
continue
fi
# Filtrer uniquement les labels car et person
if [[ "${label}" != "car" && "${label}" != "person" ]]; then
log_dbg "Événement ignoré pour label=${label}"
continue
fi
if [ -z "$id" ] || [ -z "${camera}" ]; then
log_warn "Événement MQTT invalide, ignoré."
continue
fi
EVENT_ID="$id"
log "Détection : caméra=${camera}, label=${label}, id=${EVENT_ID}"
log_dbg "Recherche du fichier annoté…"
CLIP_FILE=""
MAX_WAIT=20 # secondes
WAIT=0
while [ $WAIT -lt $MAX_WAIT ]; do
CLIP_FILE=$(find "$CLIP_DIR" -type f -iname "*${EVENT_ID}*.jpg" | head -n 1)
if [ -n "$CLIP_FILE" ]; then
log_dbg "Fichier trouvé après ${WAIT}s : $CLIP_FILE"
break
fi
sleep 1
WAIT=$((WAIT+1))
done
if [ -z "$CLIP_FILE" ]; then
log_warn "Aucun snapshot annoté trouvé pour $EVENT_ID après ${MAX_WAIT}s."
else
log "[INFO] Clip annoté trouvé: $CLIP_FILE"
fi
ATTACH=""
# Si clip trouvé, attendre la stabilisation de la taille
if [[ -n "$CLIP_FILE" && -f "$CLIP_FILE" ]]; then
log "Clip candidate trouvé: $CLIP_FILE"
elapsed=0
stable_count=0
last_size=-1
while (( $(echo "$elapsed < $WAIT_MAX_SECS" | bc -l) )); do
if [[ -f "$CLIP_FILE" ]]; then
size=$(stat -c %s "$CLIP_FILE" 2>/dev/null || echo 0)
else
size=0
fi
if [[ "$size" -eq "$last_size" && "$size" -gt 0 ]]; then
stable_count=$((stable_count+1))
else
stable_count=0
fi
# Si on a STABLE_ROUNDS mesures identiques => on le considère complet
if (( stable_count >= STABLE_ROUNDS )); then
log "Fichier stable (taille=$size). Prêt à être envoyé."
ATTACH="$CLIP_FILE"
break
fi
last_size=$size
sleep "$CHECK_STEP"
elapsed=$(echo "$elapsed + $CHECK_STEP" | bc -l)
done
# si pas stable au bout du timeout, on considère quand même (mais on peut fallback)
if [[ -z "$ATTACH" ]]; then
log_warn "Fichier non stable après ${WAIT_MAX_SECS}s (taille actuelle=${last_size}). Tentative fallback API."
fi
else
log_warn "Aucun clip annoté trouvé localement pour ${EVENT_ID}."
fi
# Si pas d'attach encore, tenter de récupérer la snapshot via API
if [[ -z "$ATTACH" ]]; then
TMPFILE="/tmp/frigate_snapshot_${EVENT_ID//[^a-zA-Z0-9._-]/_}.jpg"
rm -f "$TMPFILE"
# Récupération via API (retry court car la snapshot peut être générée juste après l'event)
got=0
retries=10
sleep_between=0.5
#connexion sécurisée à l'API FRIGATE en passant par la création d'un cookie
curl -k -c ${COOKIE_FILE} -X POST -d "user=${FRIGATE_USER}&password=${FRIGATE_PASS}" "${FRIGATE_API}/api/login"
for ((i=0;i<retries;i++)); do
curl -k -c ${COOKIE_FILE} -s -f "${FRIGATE_API}/api/events/${EVENT_ID}/snapshot.jpg" -o "$TMPFILE"
if [[ $? -eq 0 && -s "$TMPFILE" ]]; then
log "Snapshot récupérée via API -> $TMPFILE"
ATTACH="$TMPFILE"
got=1
break
fi
sleep "$sleep_between"
done
if [[ $got -ne 1 ]]; then
log_warn "API snapshot échouée ou introuvable pour ${EVENT_ID}."
fi
fi
### --- MAIL HTML ---
subject="Frigate : détection de ${label} sur ${camera}"
body="Nouvelle détection Frigate.\n\nCaméra : ${camera}\nObjet : ${label}\nID : ${EVENT_ID}\n\nPayload brut :\n${payload}"
if [[ -n "$ATTACH" && -f "$ATTACH" ]]; then
echo -e "$body" | mail -s "$subject" -r "$MAIL_FROM" -a "$ATTACH" "$MAIL_TO"
log "Mail envoyé avec pièce jointe : $ATTACH"
# si tmp file, on peut le supprimer
if [[ "$ATTACH" == /tmp/frigate_snapshot_* ]]; then
rm -f "$ATTACH"
fi
else
echo -e "$body" | mail -s "$subject" -r "$MAIL_FROM" "$MAIL_TO"
log "Mail envoyé sans pièce jointe."
fi
done
[Unit]
Description=Frigate MQTT Alert Email Service
After=network.target
[Service]
Type=simple
ExecStart=/usr/local/bin/alerte_frigate
Restart=always
RestartSec=5
User=root
Environment=PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
[Install]
WantedBy=multi-user.target
systemctl enable frigate_alert
and then launched using the command
systemctl start frigate_alert
docker stop frigate
docker start frigate
Here's what journalctl returns :
déc. 07 12:20:43 ultra.kervao.fr systemd[1]: Started frigate_alert.service.
déc. 07 12:20:43 ultra.kervao.fr mosquitto[1436264]: 1765106443: New connection from 127.0.0.1:55164 on port 1883.
déc. 07 12:20:43 ultra.kervao.fr mosquitto[1436264]: 1765106443: New client connected from 127.0.0.1:55164 as auto-5B7917FC-A109-8461-E38C-B893A8928EA6 (p2, c1, k60, u'olivier').
and for detection
déc. 07 19:47:55 ultra.kervao.fr alerte_frigate[1596716]: [INFO] Detected: camera=Camera-entree, label=person, id=1765133275.303314-xxsfrt
déc. 07 19:47:59 ultra.kervao.fr alerte_frigate[1596716]: [DEBUG] Trouvé après 3 seconde(s): /media/frigate/clips/Camera-entree-1765133275.303314-xxsfrt.jpg
déc. 07 19:47:59 ultra.kervao.fr alerte_frigate[1596716]: [INFO] Clip annoté trouvé: /media/frigate/clips/Camera-entree-1765133275.303314-xxsfrt.jpg
déc. 07 19:47:59 ultra.kervao.fr alerte_frigate[1596716]: [INFO] Clip candidate trouvé: /media/frigate/clips/Camera-entree-1765133275.303314-xxsfrt.jpg
déc. 07 19:48:00 ultra.kervao.fr alerte_frigate[1596716]: [INFO] Fichier stable (taille=223910). Prêt à être envoyé.
Nouvelle détection Frigate.
Caméra : Camera-entree
Objet : person
ID : 1765133275.303314-xxsfrt
Payload brut :
{"before": {"id": "1765133275.303314-xxsfrt", "camera": "Camera-entree", "frame_time": 1765133275.303314, "snapshot": null, "label": "person", "sub_label": null, "top_score": 0.0, "false_positive": true, "start_time": 1765133275.303314, "end_time": null, "score": 0.89453125, "box": [832, 201, 907, 368], "area": 12525, "ratio": 0.4491017964071856, "region": [724, 143, 1044, 463], "active": true, "stationary": false, "motionless_count": 0, "position_changes": 0, "current_zones": [], "entered_zones": [], "has_clip": false, "has_snapshot": false, "attributes": {}, "current_attributes": [], "pending_loitering": false, "max_severity": null, "current_estimated_speed": 0, "average_estimated_speed": 0, "velocity_angle": 0, "path_data": [], "recognized_license_plate": null}, "after": {"id": "1765133275.303314-xxsfrt", "camera": "Camera-entree", "frame_time": 1765133275.499867, "snapshot": {"frame_time": 1765133275.303314, "box": [832, 201, 907, 368], "area": 12525, "region": [724, 143, 1044, 463], "score": 0.89453125, "attributes": [], "current_estimated_speed": 0, "velocity_angle": 0, "path_data": [], "recognized_license_plate": null, "recognized_license_plate_score": null}, "label": "person", "sub_label": null, "top_score": 0.8671875, "false_positive": false, "start_time": 1765133275.303314, "end_time": null, "score": 0.84765625, "box": [815, 201, 897, 364], "area": 13366, "ratio": 0.5030674846625767, "region": [716, 134, 1036, 454], "active": true, "stationary": false, "motionless_count": 0, "position_changes": 1, "current_zones": [], "entered_zones": [], "has_clip": false, "has_snapshot": true, "attributes": {}, "current_attributes": [], "pending_loitering": false, "max_severity": null, "current_estimated_speed": 0, "average_estimated_speed": 0, "velocity_angle": 0, "path_data": [[[0.6687, 0.5056], 1765133275.499867]], "recognized_license_plate": null}, "type": "new"}
with the snapshot image attached. And here's another variation with an HTML email in the message body
### --- MAIL HTML ---
TMPMAIL=$(mktemp)
cat > "$TMPMAIL" <<EOF
<html>
<body style="font-family:Arial,sans-serif">
<h2 style="color:#c00">🚨 Alerte Frigate</h2>
<p>
<b>Caméra :</b> ${camera}<br>
<b>Objet détecté :</b> ${label}<br>
<b>ID événement :</b> ${EVENT_ID}<br>
<b>Date :</b> $(date +"%Y-%m-%d %H:%M:%S")
</p>
<p>Snapshot annoté :</p>
</body>
</html>
EOF
s-nail \
-S smtp="$SMTP_URL" \
-S from="$MAIL_FROM" \
-s "Alerte Frigate — ${label} (${camera})" \
-a "$ATTACH" \
-M "text/html" \
"$MAIL_TO" < "$TMPMAIL"
log "Mail envoyé avec snapshot : $CLIP_FILE"
rm -f "$TMPMAIL"
Sending
alerts with Signal
We now come to Signal, or rather signal-cli, the command-line version whose URL is
https://github.comAsamK/signal-cli. I retrieved the binary, decompressed
it, and placed it in the correct location: tar xvfz signal-cli-0.14.1-Linux-native.tar.gz
mv signal-cli /usr/local/bin
We will also need the qrencode generator, which we will install via urpmi. Assuming you already have a Signal account, we will link the Frigate device to the main account on the mobile device by typing
signal-cli link -n "FrigateAlert"
This will give something like
█████████████████████████████████████████████████
█████████████████████████████████████████████████
████ ▄▄▄▄▄ █▀ ▄▀▄█▄▀ █ ▄█ ▄▄█▄█▀ ██▄ █ ▄▄▄▄▄ ████
████ █ █ █▀█ ▄▀█▄ ▄█▀█▄▄▀▀▄▀▀ ▀▀▄ █ █ █ ████
████ █▄▄▄█ █▀ ▀▀▄▄▄▄▄██▀▄▄█▄▀██ ▄█▄▄██ █▄▄▄█ ████
████▄▄▄▄▄▄▄█▄▀ █ █ █ █▄▀ ▀▄▀ █ █▄█▄▀▄█▄▄▄▄▄▄▄████
████▄ ▀▄▄ █▄█ ▀█▀ ▄▄▀ ▄█▄█ █▄ █▀▄ ▀ ▀ ▀ █████
████▄ ██▀█▄ ▄ ▀ ▄▄▄ ▀▀▄ ▄▀ ▄█▄▄███ █▀▀█▀▄██████
████ ▀█▀ ▄█▀█▄▄▀▀▄▀▄█▀█▄█▄▄▄▄█ ▄▄█▀▀▀▀ █ ████
█████▄▀▀ ▄▄ ▀▀█▀█ ▄▄▄█▄ █▀ ▄█▄███▀█▄ ▄ ███▀████
████▄█▄▄▄█▄█ ▄█▄█▄▄▀█▀▀▄▀ ███▄▄▄▄▀▀▀▀▀▀▀ ▀█████
████▄▀▀▀▀ ▄▄▀ ▀█▄█▀▄ █▄█ ▄█ █ ▀▄▄▀▄█▄▄▄████████
████▄▀██▄▀▄██ ▄█▄█▀▀▀█▄█▀▀▄ ▀▄▀ ▀ █▀▄▄▀ ▄▄▀▀████
████▀ ██▄▄▄ █▄ ▄▄██▀█▀ ▀ ███▄ █▄█ ▀█ ███▀████
████ ▄▄ ▀▄▄▄▀█ ▄▀ ▀ █ ▀▄▄▄ ▀▄▀▀▀▀▀▀▀▄ ▄▀████
████ █▀ █▄▄██ ▀█▄ ▄▄█ ▀█▄ ▄█▀▄█ ▀█▀█▄ ▄▀▄█▄▄▀████
████▀▀▀▀ ▀▄▄ ▀▀▄▀▀▄ ▄█▀█▄▀▀▀ ▀▄ ██ █▀█▀ █▄▄ ████
████ █ ▀▀▀▄██▄██▀▄█ ▄▄▀█▄ ▀▀▄▄▄██▀█▄███▄ ▄▀▀████
████▄████▄▄█ ▀█▀▄▄▀▄▀▄██ ▄▄▄█▄▀ ▄▄█ ▄▄▄ ▀ ▀ ████
████ ▄▄▄▄▄ █▄ █ █▀ █▄█▄ ▄▀█▄▄ ▄▄▄ █▄█ ▄▄▀▀████
████ █ █ █ ▀▄▄█▀ ▀█▄█▀ ██▄ ▀▀▀ ▀█ ▄▄▄▄█ ████
████ █▄▄▄█ █ █ ▄███▀█ ▀▀▄█ █▀▄███▄▀█▄ ▄ ▄▀█████
████▄▄▄▄▄▄▄█▄▄█▄█▄▄█▄▄█▄▄█▄▄▄█▄▄███▄██▄▄█████████
█████████████████████████████████████████████████
█████████████████████████████████████████████████
sgnl://linkdevice?uuid=ITD32aRGnIGBhZIrHpUFqQ%3D%3D&pub_key=BZ0yldJk5JH04kHEQGm8Ga%1B4b3tSaJUBZXb%2F8K%2Bpdee4
INFO ProvisioningManagerImpl - Received link information from +336XXXXXXXX, linking in progress ...
Associated with: +336XXXXXXXX
Frigate is now correctly associated with the main Signal account. To check if it's working, you can type
signal-cli --username +336XXXXXXXX send -m "This is a message" 06YYYYYYYY
Now we can add it at the
beginning of the script along with the other
variables.
SIGNAL_DEST="+336YYYYYYYY" # numéro qui reçoit les alertes qui peut être le même numéro, ça apparaitra dans les Notes perso
then further on, instead of sending by email
### --- ENVOI SIGNAL
---
if [[ -n "$ATTACH" && -f
"$ATTACH" ]]; then
signal-cli \
send
-u "$SIGNAL_USER"\
-g
"Wti9r4I7n+76f(...)O3yLkUIgh3TAt9Y="\
-a
"$ATTACH"\
-m
"🚨 Alerte Frigate
Caméra
: ${camera}
Objet
: ${label}
ID
: ${EVENT_ID}
Date
: $(date)"
# si tmp
file, on peut le supprimer
if [[
"$ATTACH" == /tmp/frigate_snapshot_* ]]; then
rm
-f "$ATTACH"
fi
log
"Alerte envoyée sur Signal au groupe Alarme avec pj :
$ATTACH"
else
signal-cli \
send
-u "$SIGNAL_USER"\
-g
"Wti9r4I7n+76f(...)O3yLkUIgh3TAt9Y="\
-m
"🚨 Alerte Frigate
Caméra
: ${camera}
Objet
: ${label}
ID
: ${EVENT_ID}
Date
: $(date)"
log
"Alerte envoyée sur Signal au groupe Alarme sans pj"
fi
Dec 12 18:39:10 ultra.kervao.fr alerte_frigate[3356635]: [DEBUG] Event ignored for label=cat
Here's a variation for sending to a specific group where you can add other people. To list the groups, type
signal-cli listGroups
here is the result
INFO AccountHelper - The Signal protocol expects that incoming messages are regularly received.
Id: 2BVGj6gu1es4K9(...)4BdAwavlpon8rE= Name: groupe1 Active: true Blocked: false
Id: vToJsVzeJeME(...)iyP+Xxf61plZA8= Name: groupe2 Active: true Blocked: false
Id: ZWLvp3vW(....)vYy5hse3hpTQ0= Name: groupe3 Active: true Blocked: false
Id: 9dhS9vM5(...)rVVUJSM/7jYIrIU84= Name: groupe4 Active: true Blocked: false
Id: puoaoo7(...)8hm62WWcMlFqo= Name: groupe5 Active: true Blocked: false
and we put the id of the group concerned, to send a message it will give
signal-cli --username +336XXXXXXXX send -g vToJsVzeJeME(...)iyP+Xxf61plZA8= -m "This is a test message"
Frigate+ overview
Frigate+ is the paid
option for Frigate. For a
subscription of $50 (payable via PayPal) per year, the
main advantage of this version is the ability to use a
custom model that refines detection by classifying true
and false positives, and also provides access to community
models. Through continuous learning, the custom model
becomes increasingly accurate and requires fewer and fewer
resources. The official page is https://plus.frigate.video. Once the subscription is paid, the first step is to create the API key and then set up the cameras.
In the Frigate configuration, we will now specify the key and enable snapshots. In the docker-compose.yml file, add the following to the environment section :
environment:
PLUS_API_KEY: your-API-key
In the config.yaml file, add a snapshots section if it doesn't already exist:
snapshots:
enabled: true
timestamp: true
bounding_box: true
retain:
objects:
person: 7
clean_copy: true
To apply the changes, stop Frigate by typing docker stop frigate, then
docker compose -f docker-compose.yml up -d
and restart Frigate by typing docker start frigate. You should then see that Frigate+ is working correct
The image is submitted to the centralized server, and so on. We now go to https://plus.frigate.video/dashboard/images/?tab=0 where we find all the submitted images. Clicking on an image displays the objects that have been detected.
You can create up to 12 models per year based on different base models. Let's start to create the first model by clicking on Request Model.
Once the model generation is complete, which can be quite quick if you only have about ten images uploaded, you get an identifier. Below, it created two for me.
I limit myself to models for my TPU key and I specify its ID in the config.yaml file with a new section
model:
path: plus://model-id
From then on, it picked up many more objects, like this cat, that I couldn't detect before.
When the
model is well trained, we can review the object detection
threshold settings to lower
them in order to capture more objects.
Frigate+ allows
you to generate up to 12 models per year. The
advantage of generating multiple models is that, model
by model, you can create refined models that precisely
adapt to the cameras' environment. Successive models
improve false positive detection, adapt to varying
conditions (season, wind, lighting, etc.), and better
detect certain objects (animals, stationary objects,
etc.). Generating an additional model does not mean
using multiple models until the system's resources are
exhausted; the new model simply replaces the previous
one.
Generating one model per month is
a good pace; during the life of a model, it will be
necessary to continue annotating the images; ideally,
at least 200 to 300 annotated images are needed for it
to be worthwhile to change models and for a real
improvement to be observed.
A word of caution regarding image
annotation: when submitting images, don't limit
yourself to false positives, otherwise the model will
become paranoid and stop detecting anything, or it
will make mistakes in detection, for example,
mistaking a person for a cat. Therefore, it's
essential to also submit positive detections. The
ideal ratio is 80% true positives and 20% false
positives.
If it regularly detects a gatepost as a person, it will also be necessary to submit images where a real person walks past the gatepost so that it can see the difference; this is called contrastive learning .
To create
a new model in the Frigate+
interface, click on Request
Model
Then Continue, I chose the model adapted to the Coral key
We are notified by email when the model is ready.
Next, you need to modify the config.yaml file to indicate the identifier of the new model and restart frigate .
model:
path: plus://new-identifier
Note that if the base model evolves to a new version, it will be necessary to request the generation of a new customized model for it to be taken into account.
If the subscription is not renewed, access to the personalized template will still be available.
Here are
some links to learn more
